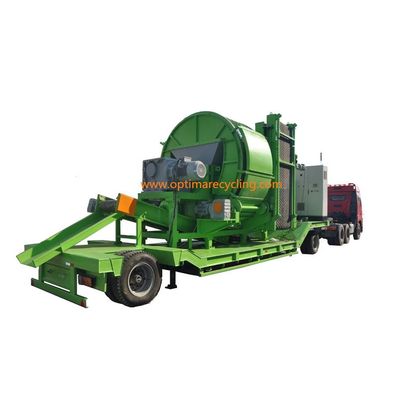

Optima - Mobile Portable Tire Shredder

Optima produces the cost-effective mobile tire shredder, which will save significant money on shipping for our global customers. To make shredding more efficient anywhere, this design is a perfect solution, Sometimes scrap tires are in different locations, they are not easy to transport, or you want to save on transportation costs. portable shredder is mounted directly on a flatbed truck or mounted on a low-profile trailer.

Mobile Portable Tire Shredder to make TDF chips 50 * 50mm.

There is a trommel screen installed with rubber shredder,infeed with whole waste tire,the rubber chips will go through the screen and keep the size around or less than 50*50 mm,we say it`s TDF chip,this is a good fuel for cement plants.

The tire shredder`s main equipment is the doublt shaft shredder,our two shaft shredders are designed with an aggressive low RPM, high torque shredding technology. The shredder blade thickness ranges from 25 mm to 152 mm (1”-6”) depending on the type of tires, throughput, and desired end product. The customized biggest shredder can process OTR tires, large truck tires, and car tires at a rate of up to 20 tons per hour.

Tire shredders for tire recycling turn all types of tires into scrap with reliable power and precise control. The scrap tire processing industry is growing rapidly as the number of discarded tires increases, landfill capacity decreases and environmental pressures increase. Industry, the private sector and governments are working to develop end-use markets that consume scrap tires, including recycling, tire-derived fuel (TDF) and tire-derived aggregates (TDA).

You can find more tire recycling machines and recycling equipment from Optima. Optima will always provide the most cost effective solution for end-of-life tires.

1. 50*50 mm TDF chips that can be used as fuel.
2. TDF chips can also be produced by the Wire Free Mulch Plant into 18-30mm wire free rubber granules and steel wire for Pyrolysis, gardens, playgrounds, and horse arenas.
3. Then the Rubber Crumb Machine produces wire free rubber granules into 1-6mm rubber granules for mats, runways and playgrounds.
4. Further crushing rubber granules into rubber powder by Rubber Powder Production Line for construction and transportation applications.
