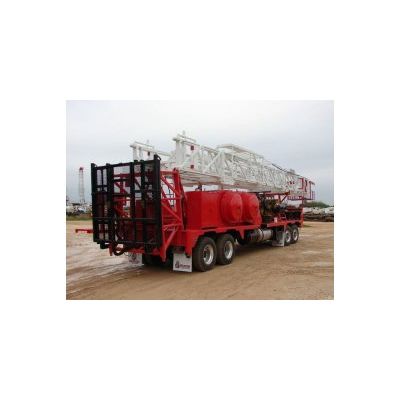

Dragon - Model Cooper SP300 -Mobile Servicing Rigs

Service Depth: 10,500 ft [3200.4 m]  (2-1/2` tubing). Workover Depth: 8,500 ft  [2590.8 m] (2-7/8` DP). Max. static hook load: 180,000 lbs (4  lines). Clear Height: mast 96` [29.3 m]. Rated Horsepower: engine 300 hp / 2,200 rpm Height: Tubing board to ground 55 ft` [16.8 m]. Rod board to ground  78`-6` [23.9 m] Carrier: 4 axle-two steer and two drive axles. Diameter: Wireline 1`. Road Traveling Dimensions: 56`-6` long x 9`-4` wide x 13`-8` high 17.22 m long x 2.8 m wide x 4.2 m high. Carrier Dimensions: [excluding mast] 38` long x 9`4` wide x 9`-8` high.
