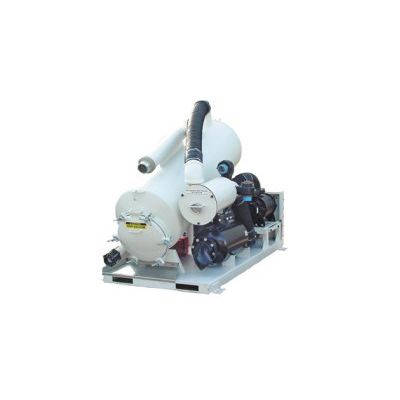

NLB - Model DM33168 -Mobile Vacuum Recovery Unit
FromNLB Corporation
NLB’s new vacuum system is designed to provide a small, lightweight vacuum source for use with our HydroPrep® line of water jet surface preparation tools. The system’s small footprint and lightweight design allows it to be mounted in the bed of a one-ton truck, effectively turning any pickup truck into a vac truck.
Most popular related searches
solids handling pump
water jetting
blower silencer
silencing system
filter housing
filter element
surface preparation
solids pump
blower system
solids pumping
The vac system is driven by a 44 HP (33 kw) diesel engine and provides 1,000 CFM @ 6″ to 8″ of mercury. A 220-gallon tank collects all waste and debris. A side-mounted port allows for the water to be drawn off with the included solid handling pump. The standard mounting package includes a skid with forklift slots and lifting lugs.
- Provides 1000 CFM @ 6″ to 8″ of vacuum.
- 220 gallon (833 l)angled debris tank with a six-lug zero-leak hatch.
- 44 HP (33 kw) Deutz diesel engine.
- Remote filter housing allows easy access to the one-piece 10 micron washable filter element.
- 2-part epoxy paint system on both the tank and skid.
- Integrated blower silencing system for quiet operation.
- Fits into a 4′ X 8′ (1.22 x 2.44) space and weighs only 2000 pounds (908 kg).
