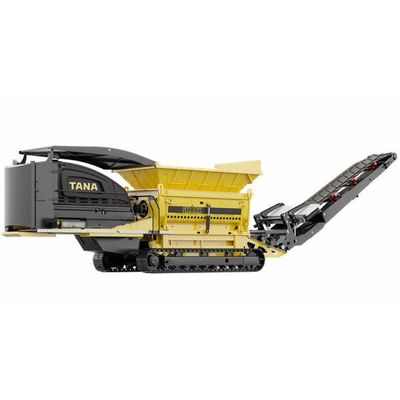

TANA Shark - Model 440DTeco -Mobile Waste Shredder
The most versatile mobile waste shredder with excellent capacity and productivity. TANA Shark 440DTeco industrial waste shredder has gone through multiple improvements and new features. You will gain more profit with better fuel efficiency, lower machine operating costs and improved usability and serviceability. A robust machine is built to last and maximize uptime. TANA 440DTeco is designed for shredding the widest range of materials. TANA Shark 440DTeco industrial waste shredder enables full control over the particle size from 50 to 500 mm (2” to 20”) with lowest operation costs. This enables time and cost savings as it is possible to perform shredding in just one pass.
Even more versatile TANA Shark shredder
- Raised frame - Over 200mm more space to guarantee better material flow underneath the rotor
- New conveyor system and scale
- Bolt-on cleaning combs for easier maintenance
- Magnet conveyor improvements - Discharge side to be selected from TCS + hydraulic magnet adjustment during operation
Making 20% more profit
Designed for shredding the widest range of materials. TANA Shark 440DTeco industrial waste shredder enables full control over the particle size from 50 to 500 mm (2” to 20”) with lowest operation costs. This enables time and cost savings as it is possible to perform shredding in just one pass.
TANA ProTrack® collects, analyses and presents the data that is produced by TANA machines, so you can enhance your own business. The information management system enables you to calculate production efficiency, including costs and profits per ton, as well as to evaluate different operators by comparing the quantities they have shredded during a certain time period, such as a single work shift.
Maximizing uptime
- Rated power (SAE J1995) 399 kW (535 bhp) @2100rpm
- Nominal torque 440 kNm
- Rotor length 3000 mm
- Number of rotor knives 33 / 44
- Screen sizes 50, 76, 90, 100, 109, 120, 130, 167, 220, 275
- Screen area 2,75 m2
- Emissions (diesel) EU Stage V/U.S. EPA Tier 4(f)
Large variety of customisation options – make it your own
- Robust construction – gets the job done in toughest operating conditions and with toughest materials
- Screens available – many sizes, desired particle size with one pass
- Selection of rotors available – durability, performance, ease of maintenance
- Easy access for maintenance – safe and quicker maintenance
- TCS material programs – preset, available for adjustment
- Reduced operating costs – service interval 500 h
- Adjustable conveyor angle – 30° ± 10°
- Touch screen display – user friendly interface for the operator
Options to choose, below listed some examples:
- Rotors
- With or without wear plates
- 33/44 knives
- Material configuration
- Bolt on cleaning combs (short/long)
- Magnet (Standard or HD), hydraulic position adjustment
- Oil resistant belt
- Ease of everyday use
- Engine heater
- Hydraulic oil heater
- Automated central lubrication
- Central lubrication
- Dust suppression
- Trickle charger
- Rubber pads for tracks
- Electric fuel tank filler pump
- Security / safety
- Extinguishers & Extinguisher system
