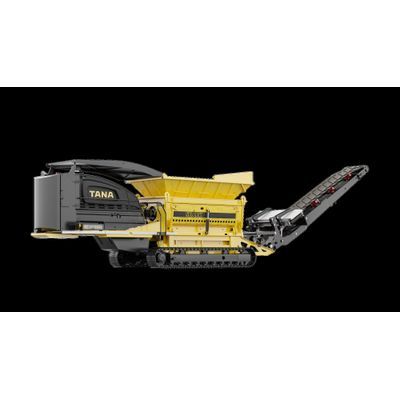

TANA Shark - Model 220DTeco -Mobile Waste Shredder
FromTana Oy
The legendary TANA 440 Shark shredder now has a little brother: the TANA 220DTeco. The TANA Shark is well known as the most versatile mobile waste shredder with excellent capacity and productivity. A robust machine is built to last and maximize uptime. The new TANA 220DTeco is mechanically similar to the TANA 440 shredder, except it is powered by a single hydraulic motor. Whereas the TANA 440DT shredders have one motor at each end of the rotor, the new 220DTeco has a single motor in one end.Most popular related searches
waste shredder
industrial waste shredder
MSW construction
particle sizing
industrial waste
municipal solid waste
shredder
mobile shredder
industrial shredders
industrial shredder
TANA Shark 220DTeco industrial waste shredder is an affordable initial investment for basic shredding needs. You will gain more profit with better fuel efficiency, lower machine operating costs and improved usability and serviceability.
Due to lower rotor torque TANA Shark 220DTeco industrial waste shredder is suitable from pre- to secondary shredding of high volumes of lighter materials such as municipal solid waste, construction and demolition waste and waste wood. TANA Shark 220DTeco enables full control over the particle size from 50 to 500 mm (2” to 20”) with lowest operation costs.
Unique versatility
- Ability to produce homogenous particle size
- Takes care of the whole shredding process
- Capability to process wide range of materials
- Easy access to service points makes the daily routines more efficient
For the profit & performance
- Rated power (SAE J1995) 399 kW (535 bhp)@2100 rpm
- Nominal torque 220 kNm
- Rotor length 3000 mm
- Number of rotor knives 33 / 44
- Screen sizes 50, 76, 90, 100, 109, 120, 130, 167, 220, 275
- Screen area 2,75m2
- Emissions (diesel) EU Stage V/U.S. EPA Tier 4(f)
Large variety of customisation options – make it your own
- Robust construction – gets the job done in toughest operating conditions
- Screens available – many sizes, desired particle size with one pass
- Selection of rotors available – durability, performance, ease of maintenance
- Easy access for maintenance – safe and quicker maintenance
- TCS material programs – preset, available for adjustment
- Reduced operating costs – service interval 500 h
- Adjustable conveyor angle – 30° ± 10°
- Touch screen display – user friendly interface for the operator
Options to choose, below listed some examples:
- Rotors
- With or without wear plates
- 33/44 knives
- Material configuration
- Bolt on cleaning combs (short/long)
- Magnet (Standard or HD), hydraulic position adjustment
- Oil resistant belt
- Ease of everyday use
- Engine heater
- Hydraulic oil heater
- Automated Central lubrication
- Central lubrication
- Dust suppression
- Trickle charger
- Rubber pads for tracks
- Electric fuel tank filler pump
- Security / safety
- Extinguishers & Extinguisher system
