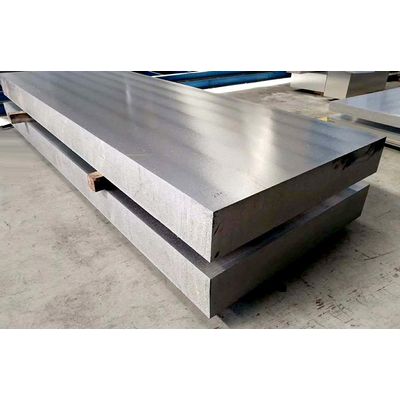

Model 1100 -Aluminum Plate
1100 aluminum plate, also known as 1100 aluminum composite panel, belongs to the pure aluminum series, its strength is relatively low, and the content of aluminum exceeds 99%. Tensile can reach 110-136 Mpa. Its alloy is precisely been used in various industries requiring a high level of ductility, flexibility, and corrosion-resistant. Aluminum and its alloys possess greater and strong corrosion resistance toward acid and other acidic solutions. The alloy is said to be highly sensitive at an elevated temperature ranging somewhat between 200°-250° C or 392-482° Fahrenheit. It may lose its strength due to a harsh and tough environment. However, it is said that the strength can be increased accordingly at subzero temperatures thus making it an ideal alloy for low temperatures.
CHAL has years of experience in manufacturing 1100 aluminum plates. CHAL is engaged in manufacturing the desired product with the correct dimensions and standards following client demand. CHAL digs it out in its pure form and sends it directly to our production unit so that sheets & plates & coil formation are made possible.
- Thickness: 1.5 mm-4 mm
- Width: 200 mm-2250 mm
- Length: Coil or as required
- Temper: H14, H16, H18, H22, H24, O temper
Machinability
Due to exceptional strength, the 1100 aluminum plate has good machinability. It can be shown up when it is machined in a harder temper. High-speed tooling, as well as carbide tooling, can be used effectively on it. Oil lubricants are used in case heavy cuts are drawn.
Forming
Both cold, as well as hot forming, get performed easily on 1100 aluminum plates. In annealed conditions, it can be worked extensively with cold methods.
Welding
Using the entire range of conventional methods, it can be welded using suitable AL 1100 consumable electrodes.
Forging
1100 aluminum plate can be forged without any difficulty.
Hot and cold working
The aluminum alloy works tremendously in both cold as well as hot conditions. Thus it can be spun, drawn, or bent well. Due to its easy-on-eye machinability, forming, welding, forging, and hot & cold working, it is used in sheet-related work in top industries.
- Lightweight
- 99% pure Aluminum
- Easy anodizing and coloring
- Smooth surface
