Chongqing Chal Precision Aluminium Co. ,Ltd. products

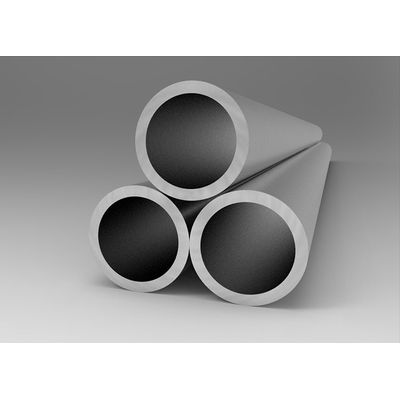

For aluminium drawn tube, which can be drawn to round tube, flat oval tube, or other shapes of the tube as customer’s requirement. Generally, the tube shape is round. It is used in different fields according to different diameters and thicknesses, widely used in a variety of heat exchangers, also called aluminum smooth tubes. The high precision drawing tube is made by extruding and drawing.

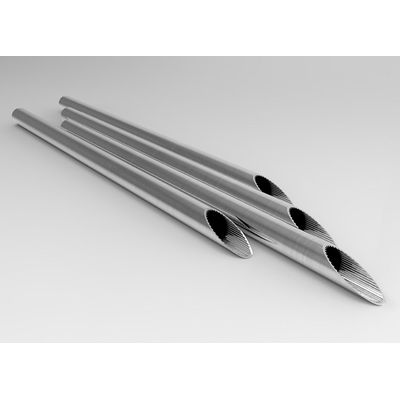

The aluminum inner grooved tube also called the internal toothed tube, is a lightweight and cost-reduction solution for air conditioning heat exchangers, representing an attractive alternative to copper tube. The inner grooves can be straight or helical. The height range of inner grooves varies from 0.05 to 0.3mm. The higher groove, the better the heat transfer performance. the Aluminum inner grooved tube is widely used in heat exchangers for household and commercial air conditioning systems.

6061-T6 Aluminum channel is an excellent candidate for most processing techniques and both interior and exterior applications. Association channels have defined edges on the outside and a tapered edge on the inside where the channel legs meet at the base making the leg’s thickness uniform. Common applications include trailers, walkways, ramps, and structural support. It’s lightweight, corrosion-resistant, and an excellent choice wherever strength is required. We carry channel 6061 T6 aluminum associated with consistent thickness and European standards with tapered walls. 6061 is highly versatile and normally used for aerospace, marine, electronic, ornamental, machinery, and structural applications. 6061 T6 aluminum has a good strength-to-weight ratio, above-average corrosion resistance, good machinability, and is excellent for welding. 6061 aluminum channel stock is available in full-size and custom-cut lengths.

T-slot aluminum extrusion is extremely useful for a wide range of framing applications. T-slot aluminum extrusion can be used for any number of structural applications, and require no welding or special tools for assembly. Frames built from aluminum instead of steel also benefit from the aesthetics of the metal, which needs no finishing and is attractive in its natural state. The T-slot aluminum extrusion Profile System has significant product advantages from construction to maintenance, it can choose different models according to the different structures and use of precision assembly. The industrial aluminum frame structure’s design must be combined with the physical properties of the raw materials products, selecting the corresponding industrial aluminum profile, to ensure the physical properties of the T-slot aluminum extrusion Profile System has a strong degree and are safe.

1100 aluminum plate, also known as 1100 aluminum composite panel, belongs to the pure aluminum series, its strength is relatively low, and the content of aluminum exceeds 99%. Tensile can reach 110-136 Mpa. Its alloy is precisely been used in various industries requiring a high level of ductility, flexibility, and corrosion-resistant. Aluminum and its alloys possess greater and strong corrosion resistance toward acid and other acidic solutions. The alloy is said to be highly sensitive at an elevated temperature ranging somewhat between 200°-250° C or 392-482° Fahrenheit. It may lose its strength due to a harsh and tough environment. However, it is said that the strength can be increased accordingly at subzero temperatures thus making it an ideal alloy for low temperatures.
