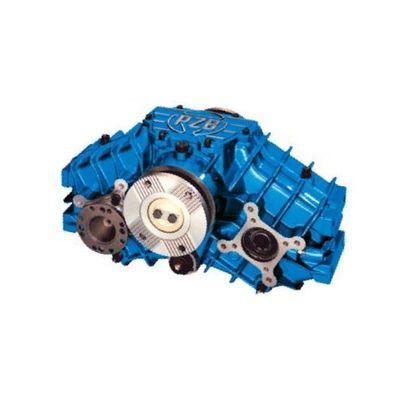

Model 2000 Kgm & 3000 Kgm -Split Shaft Units (SSU)

Inserted in the driveshaft between gearbox and rear axle. PTO torque capability: 130 kgm max each output shaft at 1500 rpm. Four - two to front, two to rear - independently shiftable PTO`s for hydraulic pumps or prop-shaft drive. "Constant-mesh*1 output options on request. Clutch unit p.n. 3.5.1.068.0000 capable of 60 kgm suitable for "constant-mesh" output direct mounting. Auxiliary power available with the vehicle in motion. Drive connection to rear axle independent on PTO operation. Provision for electronic tachograph (Mannesmann VDO type): code 0.99.00.737.00 (dynamic with faston-type joint). code  0.99.00.738.00  (static with  faston-type joint), code 0.99.00.739.00 (static with plug type joint). Provision for switch for warn light when main drive is disconnected. Max throughput rpm: 3.500 rpm.
