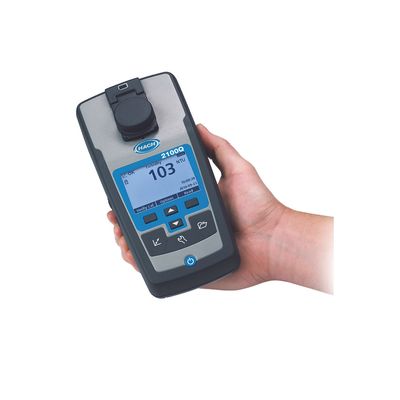

Model 2100Q -Portable Turbidimeter
This user-friendly device determines turbidity at all stages of winemaking and before bottling. It is delivered in a carrying case for an easy transportation for field measurements, and it includes StabCal standards (20, 100 and 800 NTU) and 6 sample cells. The 2100Q turbidimeter combines precision and robustness to ensure reliable measures, at the field and at the laboratory.
PRINCIPLE
The optical Ratio system uses a primary signal of nephelometric light diffused at 90° and the transmitted diffused light signal. It compensates for the sample color, the light variations, and the spill light, so that a large variety of samples can be measured in the same conditions than in the laboratory, even when the measurement conditions are complicated. The RST fast acquisition mode of turbidity provides a maximum accuracy and repeatability, thanks to an integrated algorithm which takes into account the settling power of your samples, through continuous measures.
ADVANTAGES
- Simplified calibration with display assistance is done easily with the supplied solutions of Formazine StablCal.
- Recording up to 500 measures in memory.
- Delivered with calibration kit Stablcal, 6 measurement cells, the user manual, silicon oil and cloth and 4 AA batteries.
TECHNICAL FEATURES
- Measuring range from 0 to 1000 NTU
- Accuracy ± 2%
- Repeatability ± 1%
- Resolution 0.01 NTU
- Stray light < 0.02 NTU
- Light detector: silicon photocell
- Light source: tungsten filament lamp
- Sample cell 10 ml - 60 x 25 mm / borosilicate glass with screwcap
- Power source: 4 batteries AA 1.5V / 110-230V, 50-60 Hz
- IP 67 protection – waterproof and dusttight
- Dimensions (H x L x D): 229 x 107 x 77 mm
- Weight: 600 g
