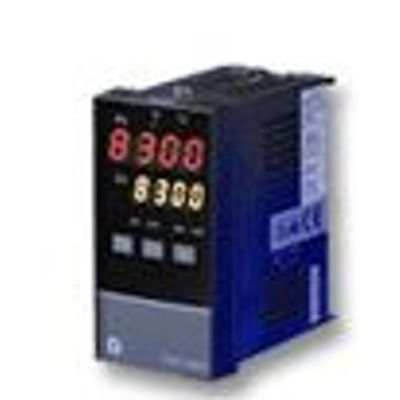

Model 300 Series -High Performance Single Loop Controller
Future Design Controls 300 Series sets a new standard for DIN controllers. With 3 Inputs as standard and up to 4 control outputs plus Communications the 300 Series meet a variety or temperature & process control requirements. With a standard 3-year Warranty, the 300 Series are available as single display FDC-2500 1/32 DIN and dual display FDC-9300, FDC-8300 and FDC-4300 [1/16, 1/8 and 1/4 DIN].
With the highest input resolution for like products, fast scan rate and proprietary Fuzzy Logic Auto Tune the 300 Series provides world-class control performance. As standard the 300 Series includes Fuzzy Assist Auto Tune, Deadband between Heat/Cool outputs configured manually or allow Fuzzy Logic PID to calculate optimum value, Fuzzy Assist Self Tune and manual adjust PID and Proportional Band Manual Reset.
The standard 3 inputs include: input#1 - universal t/c, RTD & linear mA/VDC input; input #2 CT or linear mA/VDC as 2nd PV or remote setpoint; input #3 an event input configurable for multiple functions. Click here for details on the standard 3 inputs, other unique features & applications they allow.
Unique SEL function provides user flexibility & operator ease of use. Parameters most significant to the operator [up to 5] can be configured to display in sequence when the scroll key is depressed. [SP2, P, I, D, alarm SP, Shift, Cycle 1 time, etc. or nothing displayed].
Standard features include configurable display decimal point, hysteresis for control and alarm outputs, Output Limiting, PV Shift [bias], and more are standard.
Configurable Alarm Logic [process, deviation & band] with Latching, non-Latching and Alarm Hold. Additional features include one Ramp/Soak segment, timer function, dual setpoint [event selectable], view PID % output, Auto/Manual, Configurable Bumpless Transfer, Set Point Ramp, Max & Min PV values retained in memory, Communication via RS232/485 Modus or Analog Retransmission, PC Configuration Software and very shallow mounting depth.
OEM or Distributor Private Branding is available.
Agency Approvals: nema 4x pid control, nema4x control, nema-4x control, nema 4x temperature control, nena 4x panel mount control
- UL approved category QUYX2 (Process Control Equipment) nema 4x 1/16 DIN panel mount control
- 9300 is UL approved Nema 4X panel mount control, suitable to be mounted on vertical position on a flat surface of a Type 4X enclosure.nema 4x DIN panel mount PID
- CSA approved Class 4813-02 Temperature Indicating and regulating equipment
- CE Conformity
- RoHS Compliant
Manual Loading Station: Instead of being used as a PID control the 300 Series may be configured as a Manual Loading Station to provide easy method to manually control a linear output. The single display 2500 is the most popular 300 Series model for Manual Stations. Additional information can be found at: Loop Controls Manual Loading Station.pdf
FREE EnVision PC Based SCADA Software
EnVision, a FREE PC based SCADA software offers unrivaled flexibility for remote SCADA access to up to a mix of 128 devices including loop controls, 8-channel analog input modules and Orion-M iSeries control systems.
-
Data Logging: Each of the 128 devices, whether a mix of 100 Series or other Future Design products, can have their data saved to the hard disk at user-defined rates. With up to 129 concurrent data log files, EnVision offers unparalleled data logging flexibility. Data file analysis tools (digital and trend) make looking at schedule run data a simple task
- Oven - Furnaces - Kilns
- Hot Plates / Melt Pots
- Food Service Equipment
- Environmental Chambers
- Sterilizers / Autoclaves
- Packaging Machines
- Plastics Machinery: Extrusion, Injection, Molding, etc.
- 3-year Warranty
- Universal Process Input / 18 Bit A-D
- 2nd Analog Input (linear mA/VDC)
- 1 Configurable Event Input
- Simple to Use & Configure
- SEL configurable prompt sequence
- PC Configurable
- Nema 4X (9300 UL Approved Nema 4X)
- PID Fuzzy Assisted Auto Tuning
- 2-sets of PID configurations
- Setpoint Logic: Static or Ramp Rate
- Remote Setpoint Standard
- up to 4 control outputs and optionally Retransmission of SP/ PV / PID % out
- Serial Communications (option)
- Power Input:
- 90-264VAC 50/60hz
- 11-26 VAC / 11-36VDC optional
- Input sample rate - 5 scans/second
- Input Resolution - 18 Bit [262,144] click here for 18 Bit descr.
- 3 Inputs -
- #1 - Universal thermocouple, RTD and linear VDC/mA
- #2 - Linear VDC / mA or Current Transformer [CT]
- CT Sensor input for 0-50A range.
- Linear inputs can be configured as a 2nd PV or as remote SP.
- As a 2nd PV it may configured as a PV or delta PV1/PV2, have assignable alarms with PID assigned to input 1 or 2
- #3 - Event input configurable to change SP, PID, SP & PID, change remote to local SP, reset latched alarms, disable outputs or Lock all Parameters.
- Control Outputs: Up to 2 isolated PID control outputs; to have two PID outputs, #1 must be PID & output #2 is default PID Cool. Available outputs are:
- relay 2A/240 VAC resistive [spst]
- ssr driver - 5VDC/30mA or 14VDC/40mA
- triac 1A/240VAC
- 4-20/0-20mA into 500 ohms maximum
- 1-5/0-5VDC or 1-10/0-10VDC: minimum 500K impedance
- Alarm Outputs 1/8 & 1/4 DIN: Up to 2 configurable Alarm outputs.
- Alarm #1: Form C 2A/240 VAC resistive
- Alarm #2: Form A 2A/240 VAC resistive
- Alarm Outputs 1/16 & 1/32 DIN: Up to 2 configurable outputs when Output #2 configured as alarm.
- Alarm #1: 1/16 DIN Form B 2A/240 VAC resistive
- Alarm #1: 1/32 DIN Logic Output, 5V/100mA
- Alarm #2: PID #2 configured as alarm, Form A 2A/240 VAC resistive
- Communications: Modbus RS232, RS485 or Analog VDC/mA retransmission.
- Transmitter Power Supply [isolated] is available in lieu of control output #2.
- Security: DIP Switch Setting allowing
- All parameters are unlocked
- SP1 and SEL1-SEL5 are unlocked
- Only SP1 is unlocked
- All Parameters are locked
- Nema-4x / IP65:
- Standard 2500 & 9300 (9300 is UL approved as Nema 4X)
- Optional 8300 & 4300
