Future Design Controls, Inc. products

Complete setup in minutes. The MCT4 is programmable from the touch screen right out of the box with one-touch import/export of confuguration and profiles.

Future Design Controls 300 Series sets a new standard for DIN controllers. With 3 Inputs as standard and up to 4 control outputs plus Communications the 300 Series meet a variety or temperature & process control requirements. With a standard 3-year Warranty, the 300 Series are available as single display FDC-2500 1/32 DIN and dual display FDC-9300, FDC-8300 and FDC-4300 [1/16, 1/8 and 1/4 DIN].

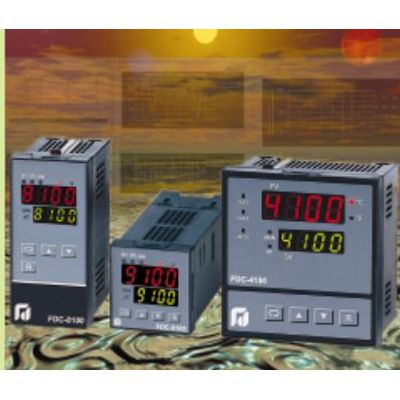

Future Design Controls dual display 100 Series and single display C Series set a new standard for DIN temperature controllers packed with performance to meet low cost OEM needs while providing reliable High Performance temperature control with 3-Year Warranty.

Future Design Controls FM Approved L Series L91 1/16 DIN and L41 1/4 DIN provide temperature limit protection in process applications where FM approvals are required. The L91/L41 meet the NFPA National Fire Protection Association 86.8.16.6 applicable to excess temperature limit controls when used in ovens/furnaces to display both temperature and setpoint values. With universal temperature input, up to two outputs, fast scan rates, remote reset, 3-Year Warranty, user friendly prompts and more make the L Series L91 and L41 the right choice for safety protection.

Future Design Controls DR5000 circular chart recorder is available in one or two* pen versions utilizing traditional drag pen. The DR5000 utilizes recent microprocessor technology combined with a robust pen & chart drive gear motor design offers industry leading reliability at significantly lower cost than older legacy designs.

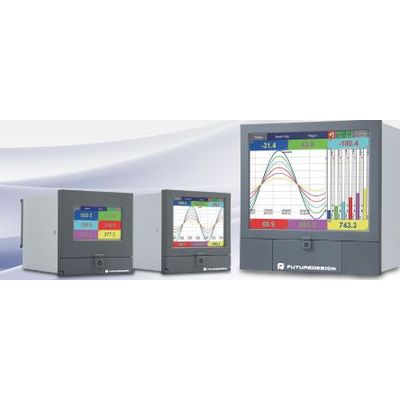

The PR Paperless Chart Recorder models PR10, PR20 and PR30 provide intuitive operation through 4.3”, 5.6” and 12.1” TFT touch screens.  The PR10 and PR20 may include a Process Control module PC201 offering PID control including profile ramp-soak capability.

The Orion-M iSeries Control System is an advanced single & multi-loop control system with touch screen operator interface, embedded SCADA and LAN features. Orion-M iSeries offers optional monitor points and logic control that is sized to meet the automation needs of a wide range of process equipment. The Orion-M provides user friendly displays with Windows® style intuitive operation for control systems with one or more of the following needs:

The nCompass Control System is an advanced PID control system with a 4.3" or 7" color touch screen operator interface with embedded SCADA and LAN features with OEM price points comparable to many single and dual loop 1/4 DIN PID controls.
