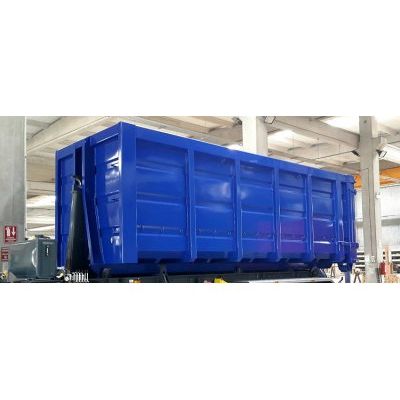

Model 32 m3 -Hook-Lift Container
Type: 32 m3 hook-lift container. Boom height: 1570 mm. Dimensions: Inner height: 2200 mm. Inner length: 6500 mm. Inner width: 2250 mm. Volume: 32 m3.
Most popular related searches
Floor:
- Thickness: 4 mm. ST 52 steel sheet.
- Traverses: 3 mm. ST 52 steel sheet, U shape.
- Upper chassis: Made of NPI 180 iron.
Sides:
- Thickness: 3 mm. ST52 steel sheet
- Side reinforcement sheet: 3 mm. ST52 steel sheet
- Type: Fixed rectangle type.
Tailgate:
- Tailgate thickness: 3 mm. ST52 steel sheet
- Tailgate supporting profiles: 4 mm. ST52 steel sheet
- Reinforcement sheet: 3 mm. ST37 steel sheet
- Type: double hinged, side opening type.
Front:
- Front thickness: 3 mm. ST52 steel sheet
- Front supporting profiles: 4 mm. ST52 steel sheet
- Type: fixed ractangle type.
- Hook supports: NPI 180 iron
- Hook location: full rod 50
- Shelter: 2 mm. ST37 steel sheet
Standard Accessories:
- Tarpaulin hooks on the sides.
- Reflector
- Rollers
- Warning labels
Painting:
- Before the painting, the body is washed with special chemicals to purify the waste materials and cleaned by sand blasting method.
- After the pasting on the necessary surfaces of the body, the two-coat epoxy primer and two-coat water-based paint is applicated on the body.
- All painting applications are made in the painting cabin.
