Arslan Damper Makina San. ve Tic A.Ş. products

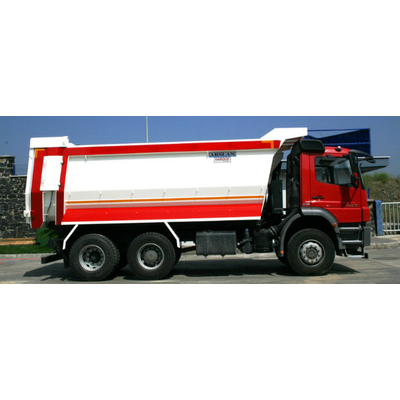

The dimensions of the tipper body depends on the vehicle chassis measurements. For different applications, please fill the request form. The recommended volumes for the 6x4 chassis vehicles are 14 m3, 16 m3, 18 m3 and 20 m3. The recommended volumes for the 8x4 chassis vehicles are 20 m3, 22 m3, 24 m3 and 26 m3.

This type of tipper is suitable for the transportation of the light excavation material and pallets. The dimensions of the tipper body depends on the vehicle chassis measurements. For different applications, please fill the request form. The recommended volumes for the 6x4 chassis vehicles are 14 m3, 16 m3, 18 m3 and 20 m3. The recommended volumes for the 8x4 chassis vehicles are 20 m3, 22 m3, 24 m3 and 26 m3.

Tipper body: Body: Hardox 450 (SSAB). Floor thickness: 5 mm HARDOX 450. Side walls thickness: 4 mm HARDOX 450. Tailgate thickness: 4 mm HARDOX 450. Front Wall thickness: 4 mm HARDOX 450. The operating system of the tailgate is manual. Opening both on rear and side.

Tipper body fixed cover: Floor thickness: 8 mm HARDOX 450. Side walls thickness: 6mm ST 52 steel sheet. Front Wall thickness: 6 mm ST 52 steel sheet. Tailgate thickness: 6 mm ST 52 steel sheet. Reinforcements: 4 mm ST 52 steel sheet. The operating system of the tailgate is manual. Opening both on rear and side.

Hook - lift: Capacity: 25 tonnes loading unloading. Unloading angle: 45-50 degrees.

Hook – lift (8x2 truck). Capacity: 25 tonnes loading unloading. Unloading angle: 45-50 degrees. Sub-frame: 10 mm. U-construction.

Body: Floor is made of minimum 3 mm. thickness ST52 steel sheet. Side walls are made of minimum 4 mm. thickness ST52 steel sheet. The shape of the side walls are outward slightly convex. The top of the body is made of minimum 3 mm. thickness ST52 steel sheet. The top and floor of the body will be strength with sufficient profiles. Front frame is made of minimum 4 mm. thickness ST52 steel sheet, rear frame is made of minimum 4 mm. thickness ST52 steel sheet The volume capacity of the body is 5 m3. Body will be installed on the equipment chassis without giving damage to the torsion of the chassis. In order to move the compaction-unloading curtain by lengthways, U cross-sections are mounted on the side of the floor. In order to put the body on the chassis, the lifting-lugs are mounted on the top of the body. The side walls are welded consecutively on the front rear frame. The sides of body are flat.

Body: Floor is made of minimum 4 mm. thickness  ST52 steel sheet. Side walls are made of minimum 4 mm. thickness  ST52 steel sheet. The shape of the side walls are. outward slightly convex. The top of the body is made of minimum 4 mm. thickness ST52 steel sheet. The top and floor of the body will be strength with sufficient profiles. Front frame is made of minimum 4 mm. thickness ST52 steel sheet, rear frame is made of minimum 5 mm. thickness ST52 steel sheet. The volume capacity of the body is 13 m3. Body will be installed on the equipment chassis without giving damage to the torsion of the chassis. In order to move the compaction-unloading curtain by lengthways, U cross-sections are mounted on the side of the floor. In order to put the body on the chassis, the lifting-lugs are mounted on the top of the body. The side walls are welded consecutively on the front rear frame. The sides of body are flat.

Floor is made of minimum 3 mm. thickness  ST52 steel sheet.  Side walls are made of minimum 4 mm. thickness  ST52 steel sheet. The shape of the side walls are outward slightly convex.
