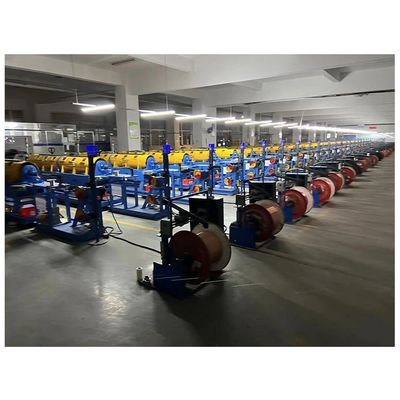

Model 50/6 -Horizontal Pipe Stranding Machine

Axis stop accuracy: plus or minus 0.5 degrees. Applicable wire diameter: 0.02mm-0.5mm. Maximum turning diameter: 60mm. maximum width: 80mm.

Most popular related searches

Spindle spacing: 42mm, 50mm, 57mm, 60mm, 72mm
Spindle speed: Max 1000~12000rpm
Servo motor: Spindle: 750~1000W X-axis/Y-axis/Z-axis: 400W
Feeding method: Manual feeding to the loading and unloading mechanism (automatic feeding mechanism can be added)
Shaft angle: 360 degrees 1 circle, the setting unit is 0.1 degrees
Axis stop accuracy: plus or minus 0.5 degrees
Applicable wire diameter: 0.02mm-0.5mm
Maximum turning diameter: 60mm
maximum width: 80mm
Movement amount of needle shaft: X:90mm Y:90mm Z:50mm
Needle shaft movement speed: 260mm/sec
Guide pin wrapping angle: 0°,90°,120°
Foot binding speed: Max 150 laps/min
Strand length: Max 480mm (adjustable)
Strands: 1,3,5… any setting
Stranding speed: Max6000rpm
Way to control: AC Servo Motor Synchronous Control
Storage method: RAM+FLASH storage, no data loss failure
Voltage: 220V, 50Hz
Power consumption: 2~4KW
Compressed air pressure: 0.4-0.8MPa
Machine size: 1000mm(L)*900mm(W) *1400mm(H)
Machine weight: 400KG
name: Motor, stator, inductor coil winding machine
Winder options: Automatic lagging, automatic feeding device, automatic stranding machine, automatic soldering, pneumatic scissors, simple
Applicable coil: Synchronous motors, stepping motors, inductor coils, various transformer coils, I-shaped inductors, filter
price: Negotiable
available for sale: National
