Liquid Systems SA

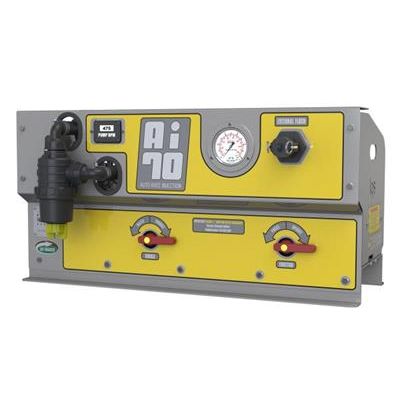

Model Ai 70 -Rate Control Module
The AI70 is our entry level single liquid auto-rate pump and control module. Easy Integration for ultimate Variable Rate Application of liquid inputs in-furrow. It is designed for precision application of a single liquid. Connected to a Stacker Distribution system, the AI70 provides a complete liquid injection system, delivering precision, accuracy and flexibility with straight forward installation and operation.
Most popular related searches
piston diaphragm pump
water source
flow meter
pressure transducer
pressure gauge
ball valve
diaphragm pump
digital metering pump
filter cleaning
piston pump
- Function: Single liquid rate control
- Max. Output: 76 L/min 20 Ga/min (US) 16.7 Ga/min (Imperial)
- Dimensions: W 1000mm x D 630mm x H 521mm
- Weight: 105kg (module only)
- Pump: Hydraulically driven 76 L/min (20 US Ga/min) LQS Enhanced piston diaphragm pump
- Hydraulics: 27.5 L/min 7.3 Ga/min (US) 6.0 Ga/min (Imperial)
- Electrical: 12V 1.3A
- Factory wet tested
- Precision valve set incorporating TeeJet ball valves and flow meter
- Digital pump speed readout
- Pressure transducer and module mounted pressure gauge
- Suction filter
- Fertiliser/ clean water source selection
- Purge function
- All tank plumbing included & umbilical line to connect to Stacker Distribution Kit
- Mapping based variable rate control when integrated with leading precision ag displays
