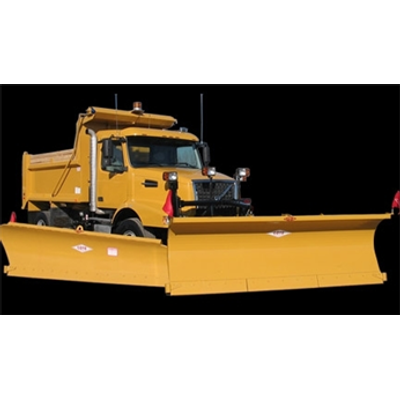

Model AR9000 -Quick-Coupling Harness
Côté, the original designer of the quick-coupling mechanism, is the only company that allows your truck to revert to its original configuration. Once decoupled, the AR9000 harness is the only one that doesn`t require you to tip the quick-coupling plate when you need to open the hood. You can tip your hood with no additional operation, just as if the plate wasn`t even there. The AR9000 is a quick-coupling harness for front snowplow and side wing, to be installed on a truck. So equipped, the truck can be used as a snowplow and quickly return to its usual function after snow clearing.
Front harness and push arms coupling and decoupling is accomplished in mere minutes. It is a simple, quick and very secure operation. As the original designer of the quick coupling mechanism, Côté is the only manufacturer that has thought to fabricate a column edger with a quick hydraulic coupling mechanism. Available as optional equipment, this column edger will allow you to increase the versatility of your vehicle, even when it`s time to lower your blades.
- Pneumatic valve.
- Cable valve.
- Electro-Hydraulic valve.
- Floating valve (dumper).
- Double gear pump with a flow of 7 gal./min (31.82 l/min) and 9 gal/min (40.91 l/min) at 1200 rpm.
- 25 gal. (114 L) tank.
- 35 gal. (160 L) tank.
- Inside filter (strainer).
- Sliding column allowing to cut the edges.
- A light installed on the rear column to increase the vision on the side wing.
- The safest quick coupling system on the market.
- Adjustable supports (legs) make it easier to couple or uncouple the snowplow.
- Once the harness is uncoupled, it can be replaced by hooks adapted to your bumper.
- Height adjustable halogens lights for a better lighting and adaptable to operator`s choice.
