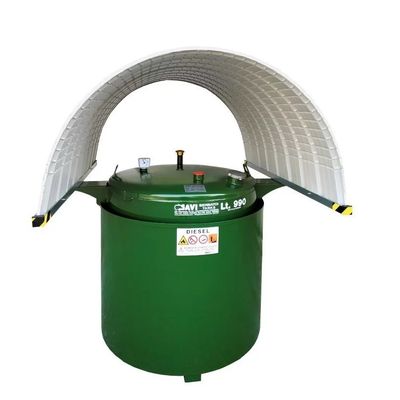

Model ARKA 990 -Vertical Axis Tank with Containment Basin
Vertical cylindrical tank for storage use with a capacity of 990 lt. (only on order version 490 lt capacity). Built in compliance with the Ministerial Decree of 28 April 2005 and the Ministerial Decree of 22 October 2007 of the Ministry of the Interior. Suitable for connecting generators or a heating group. Version with activated carbon vent, suitable for storing oil.
Complete with:
- 4 “load with padlockable aluminum cap, 1” 1/2 breather with flame arrestor, 2 “sleeve for possible suction and external visual level indicator with internal protection tube for the float
- 1 ”total drain plug on the bottom
- vacuum lifting eyebolts
Placed in a CYLINDRICAL containment basin Ø mm. 1,200 with a capacity equal to 110% of that of the tank itself (as prescribed by the Ministerial Decree 22/11/2017) equipped with support crosspieces for handling with a forklift.
Tank and containment basin are painted in a double layer (anticorrosive primer and dark green finish) with specific products for outdoor use.
Reservoir and containment basin will be fastened together.
Model without ministerial homologation (homologated version starting from lt. 1500 mod. GIAN and PLANET)
Available on request also lt. 490 (cover not available for this model)
