Model ASTM D665, D3603, D7548 | NACE TM-01-72 | IP 135 -Rust-Preventing Testing Instruments

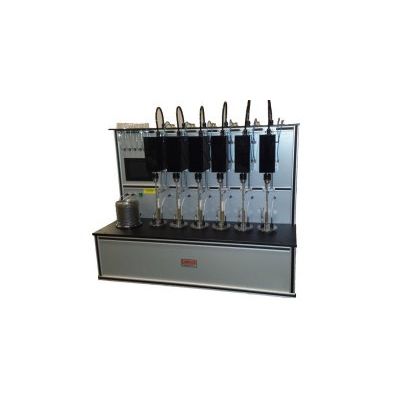

The RU-L and RU-HT series are fully automated and designed for rust testing as per ASTM, DIN, NACE, and FTM specifications.

Most popular related searches

Sequence of bath operation for fully automated models

The operator adds water into each of the 6 reservoirs above each of the beakers.
The operator prepares and inserts the beakers (with test oil, covers, and stirrers) into the bath as per ASTM D665 method. The test rod assembly (includes the steel rod and holder) are mounted on a holding rack above the individual beakers.
The stirrers and the timer are started.
From this point and until the completion of the test the operator is no longer involved.
When the test oil temperature reaches 60°C (as detected by one PT100 temperature probe inserted into one of the test beakers), the steel rod holding rack is automatically lowered such that the steel specimens are inserted into test oil as per ASTM D665.
After 30 minutes of agitation, the water is automatically released into the beakers.
After 4 hours of agitation the holding rack with the steel test rods are automatically raised from the beakers, the stirrers are stopped and an alarm alerts the operator. The timers are reset for the next test.
steel rods are now ready for visual rating of rusting.

Key features for the Automated RU Series each test position:
