Model bc-crc -Cleanroom Cabins

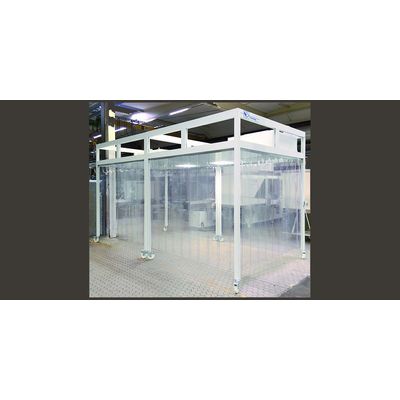

Our cleanroom cabin is a standardised system with dimensions ranging from 1,200 mm to 6,000 mm (grid dimension: 1,200 x 1,200 mm). The supply air is prefiltered and introduced into the cleanroom cabin via terminal H 14 B HEPA filters according to DIN EN 1822. The air infeed is done via FFUs with swirl plate. The complete control unit is housed in a switch box which is mounted on the cleanroom cabin. Minimum purity class 7 according to DIN EN ISO 14644-1 is met. The cleanroom cabin is available as an elevated (optional mobile) version or can be suspended from the on-site ceiling. A wide range of options are additionally available.
