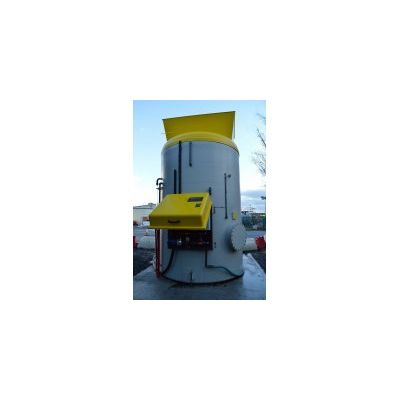

Model BS Series -Brine Mixing Stations
The BS series Brine Mixing Stations are all fully featured state of the art machines. The system is designed to produce brine for the purpose of Road Surface Condition Management during the winter season, specifically to treat the roads for frost, ice and snow.
Brine is a liquid solution made up of salt and fresh water. The ideal concentration of brine for road treatment applications is typically 22-23%. This concentration has been shown to be the most effective in both treating the road surface and also in maintaining the stability of the solution for long term storage.
Our Brine Mixing Stations are designed to produce brine at this concentration with no user intervention. This achieved by using a closed loop control system where the custom designed electronics uses Pulse Width Modulation (PWM) to control the valves that supply water to dissolve the dry salt.
- Fully automatic brine production
- Production rate of between 1,500 & 5,000l/hr (dependant on mains flow rate)
- Pumping rate of up to 350L/min
- Automatic control and replenishment of external storage tanks
- Pipework actively frost protected
- Dynamic User Interface
- SMS messaging of system errors and salt status
- Pumping & production logs (remote viewing)
- Remote support & diagnostics
- Modular design (additional storage tanks)
- Simple Single-phase 240Vac supply
