Model CB3 -Cable Bolter

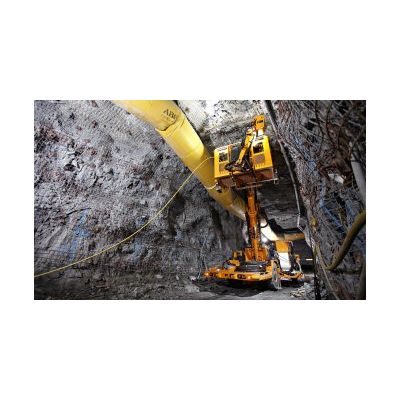

The MacLean CB3 is a one-stop, mechanized solution for cable bolt insertion and grouting. With the CB3, operators no longer have to endure the strain and fatigue of repetitively pushing cable lengths by hand – the integrated boom basket, cable feed mechanism, and grout pump design delivers productivity, safety and ergonomics for all hard rock cable bolting needs.
Most popular related searches
- Ergonomics:
- Eliminates repetitive strain and fatigue of pushing of cable bolts by hand
- Ergonomically positioned grout pump & materials for operators
Productivity / Versatility:
- Can bolt and grout in drift walls, back and face using pre-cut single, double, or bulb cables
- No cable length limitation
- Material storage for all cable insertion, grouting and tensioning activities
- Self-Propelled, 4 wheel drive articulated carrier
- Boom to 5.8m (225”) reach (max extension)
- Multi-positional cable feeder head
- Hydraulically driven grout pump
- All hard rock cable bolting needs: drift walls, back and face
