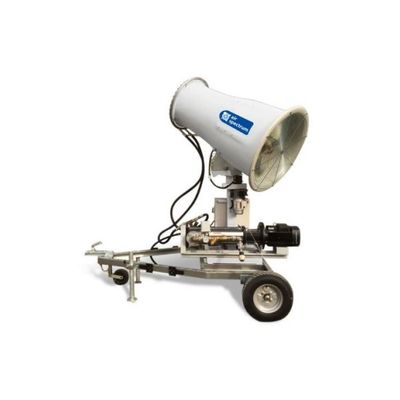

Model DC-50 -Dust Suppression Cannon
The DC50 is used for a variety of applications including dust suppression and disinfection. DC50 includes in in-built generator. DC50 provides our most powerful, heavy mist of potable water for a variety of fogging uses. Throw reach is around 50m depending on local conditions. The DC50 cannon head can rotate up to 350°, allowing for maximum coverage and accessibility.
The DC50 can be used for a variety of applications including dust suppression, disinfection and decontamination.
The DC50 create a fine mist of water droplets using jet nozzles located on the front of the cannon head. The mist is driven forwards with a strong air flow generated by a powerful fan at the rear of the cannon. The mist reach/throw is around 50m for a DC50 – this is dependant on weather conditions and can be reduced or improved based on these.
The DC50 cannon head can rotate up to 350°, allowing for maximum coverage and accessibility. The DC50 can be powered straight from a mains input or be supplied with a generator. All cannons come with a 2000L water bowser.
Various trailer options are available for moving the equipment around site. We also offer road-legal towable options.
- Range (m): 50 meters (still conditions)
- Sprayed area: (m2) 7,860
- Droplet size: (μm) 50-150
- Nozzles: (pcs) 36
- Fan: (kW) 6.5
- Pump: (kW) 5.5
- Filter: (μm) 200
- Minimum input water pressure: (bar) 10
- Water consumption: (l/h) up to 8,000
- Horizontal turning radius: (°) 0-350
- Vertical elevation radius: (°) 0-70
- Power supply: 3×400 VAC, 50 Hz, 14.5 kVA
- Pressure water connection: DN25
- Weight without trailer: (kg) 170
- Weight with trailer: (kg) 309
