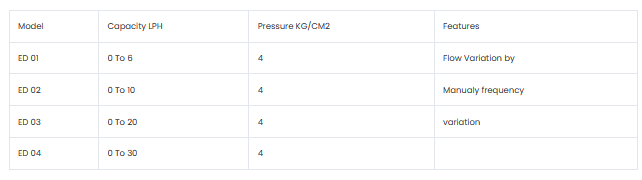

Model ED Series -Electronic Dosing Pump
Electronic Dosing Pump. Electronically operated mechanically actuated Diaphragm. Adjustable injection frequency (15 to 100 SPM ). Compact size, light weight, more robust structure. Unique double ball check. NRVs for better dosing accuracy. Solenoid drive with minimum moving parts. 1 MWC max suction lift. Steady state accuracy +/- 5% Repeatability +/- 5%.
Most popular related searches
wastewater treatment chemicals
dosing pump
water treatment chemicals
wastewater treatment
laboratory chemical
water treatment
waste treatment
chemical water treatment
water laboratory
strainer
- Multiple Head with identical or different outputs for each head using single drive.
- Jacketed Head for Heating or Cooling the liquid been pumped.
- Automatic flow variation by receiving 4-20 mA signal from the process.
Materials Of Construction being offered :
- Stainless 316, 304, 316L, 304L
- Monel
- Hastalloy B, C
- Alloy 20
- PP, PTFE, GFT
- Diaphragm - PTFE backed by Hypalon
- Water & Waste Water Treatment Chemicals
- Laboratory Chemicals
- Suction & Discharge Tubing of LDPE Material 2.5 mtrs. in length
- Strainer Cum Foot valve
- Antisyphone Valve in PP
- Built in Electrical Cable moulded with Plug
- Instructions manual
