Positive Metering Pump Pvt. Ltd products

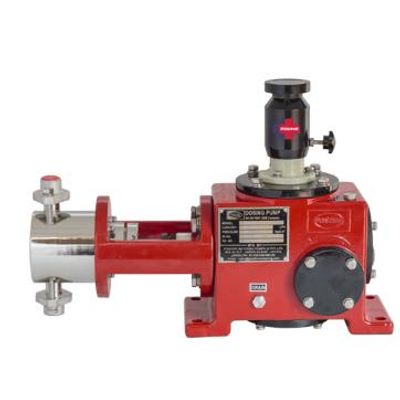

Performance conforms to API 675. Precise metering devices. Plunger is hard chrome plated. Flow rate is linear to stroke length variations. External arrangement for flushing the gland packing to increase its life is also possible. Metering accuracy is almost independent of back pressure.

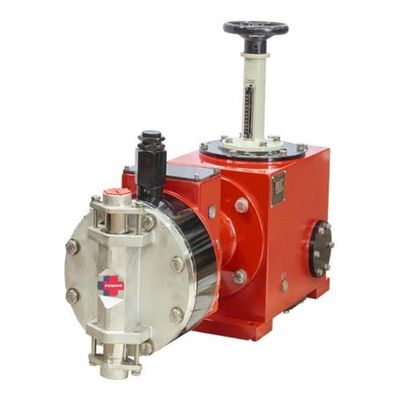

Performance conforms to API 675. Glandless design and entirely Leak Proof operation. Integrated Pressure Relief Valve.Diaphragm is always balanced between the pressure exerted by the hydraulic oil and liquid to be dosed. Longer Diaphragm Life. Automatic air bleeding from the hydraulic oil ensures better metering accuracy. Manual stroke adjustment by eccentric.

Performance conforms to API 675. Glandless design and entirely Leak Proof operation. Integrated Pressure Relief Valve. Rupture indication arrangement (RIA)is an additional facility available with these pumps. These pumps with RIA are provided with sandwich of two diaphragms. The rupture of any one of the diaphragm can be sensed by pressure sensing device. Automatic air bleeding from the hydraulic oil ensures better metering accuracy. Manual stroke variation mechanism.

Glandless design and entirely Leak Proof operation. Manual stroke adjustment for flow variation. Splash type lubrication in gear box. Negative suction upto1.5Mtrs. maximum.

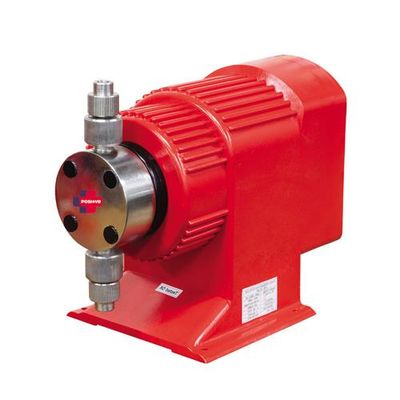

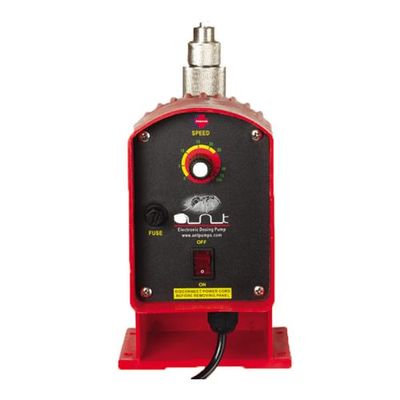

Electronic Dosing Pump. Electronically operated mechanically actuated Diaphragm. Adjustable injection frequency (15 to 100 SPM ). Compact size, light weight, more robust structure. Unique double ball check. NRVs for better dosing accuracy. Solenoid drive with minimum moving parts. 1 MWC max suction lift. Steady state accuracy +/- 5% Repeatability +/- 5%.

Electronic Dosing Pump. Electronically operated mechanically actuated Diaphragm. Adjustable injection frequency (15 to 100 SPM ) & Stroke length Compact size, light weight, more robust structure. Unique double ball check. NRVs for better dosing accuracy. Solenoid drive with minimum moving parts. 1 MWC max suction lift. Steady state accuracy +/- 5% Repeatability +/- 5.

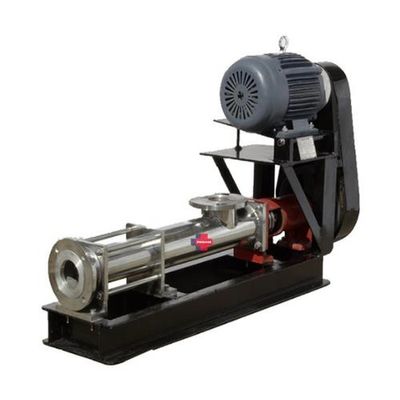

Temperature range :50 to 350 degree centigrade. Maximum permissible solid content up to 50%. Steady flow without pulsations, minimum turbulence. Negative suction up to 6mwc , low NPSH.  Slurries , pastes upto 5,00,000 centipoise. Flow rate maximum up to 50 cubic meter per hour.

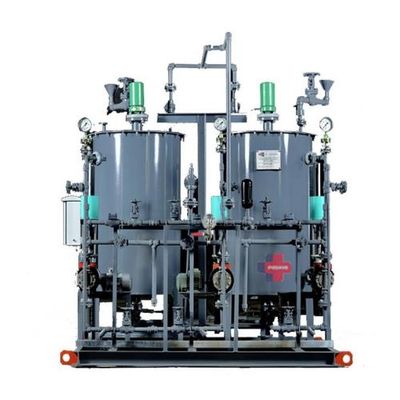

One Preparation and One Dosing Tank. Agitators. Single Dosing Pump or two (1W + 1S) Dosing Pumps. Instrumentation like Pressure Transmitter and Level Transmitter.

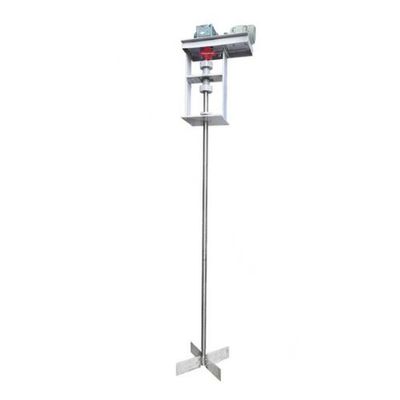

Suitable for small pilot projects and also for large production plants. Best suited on Cylindrical and Rectangular tanks for liquid liquid and solid liquid mixing. Available with Gear Box Or Belt drive. Sealing : Based on the processing conditions, there are various sealing arrangements available such as Single Mechanical Seal, Double Mechanical Seal, Stuffing Box and Lip Seal. Higher degree of mixing, more reliability, minimal operational cost.

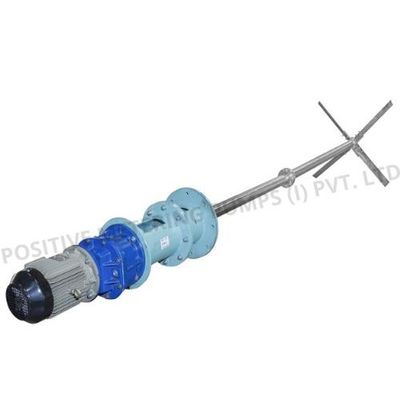

Positives Haevy Duty High Efficiency range of side entry mixers caters the needs of blending, maintain. Technically advanced design of impeller suitable for higher speeds with lower power consumption. Sealing : Based on the processing conditions, there are various sealing arrangements available such as..
