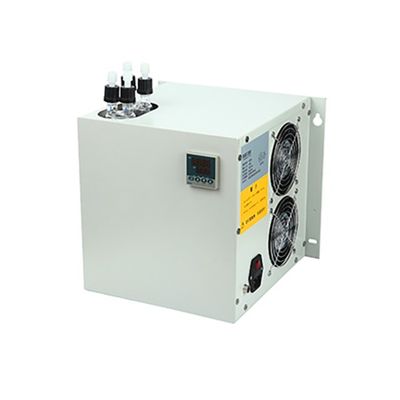

Model ESE230 -Compressed Gas Cooler
ESE230 compressed gas cooler is widely used inrapid dehydration and minimizes water-soluble components of gas lost, for online gas analysis instruments, providing a complete sample drying gas. It can work in ambient temperature of +5? to +50?.
ESE-ECE200 compressed gas cooler is widely used inrapid dehydration and minimizes water-soluble components of gas lost, for online gas analysis instruments, providing a complete sample drying gas. It can work in ambient temperature of +5? to +50? Specifications
- Output sample gas dew point: ≤ 5.0 ?
- SO2 lost rate: < 2% (@ SO2>100ppm, humidity = 5vol%)
- Glass heating exchange tube with anticorrosion, easy to clean and high heating exchange rate
- Sample gas output temperature: +4?±1? (factory setting)
- Sample gas output dew point: ≤ 5.0 ? (+ 20? environment temperature)
- Working temperature: +5? ~ +50?
- Sample gas handling capacity: 360NL / h
- Sample gas input dew point: ≤ +80 ?
- Sample gas input temperature: ≤ +180 ?
- Sample gas input connector: OD6mm sleeve
- Cooling liquid output connector: OD6mm sleeve
- Cooler temperature alarm: ≥ + 8 ? when the alarm
- Dual stage cooling
- Warm up: ≤ 30min
- Power supply: 220V AC 50Hz 250W
- Back plate mounting
- Housing color: 7035
- Dimensions: 275W*300H*370Dmm
- Gross Weight: 23kg
A compressed gas cooler, also known as a gas sample cooler or gas conditioning unit, is a device used in gas analysis systems to cool and condition gas samples before they are analyzed. It is particularly useful when dealing with hot or high-pressure gas streams that need to be cooled and brought to a suitable temperature for accurate analysis.
The primary purpose of a compressed gas cooler is to remove excess heat from the gas sample, as elevated temperatures can affect the accuracy and stability of gas analysis measurements. By cooling the gas, the cooler helps to minimize condensation, reduce interference from water vapor, and improve the overall reliability of the analysis system.
