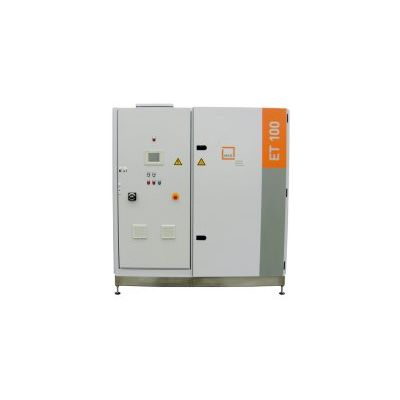

Model ET 100 -Evaporator

Housing
Welded steel tube frame complete cased
All components reachable by big doors
Lacquer: NCS-S 2010-R70B

Medium-affected parts
stainless steel

Preliminary filter as pump protection
Single filter 350 μm

Supply pump
self priming

Preheating exchanger
2 plate exchanger for preheating of dirty water through distillate and exhaust air

Mechanical defoaming agent
By the patented instruments it can be dispensed predominantely on chemicals (defoamer).

Compressor
Roots blower with automatic power control

Integrated coalescence separator
For separation of light-boiling for optimum distillate quality

Switch cabinet
Electrical equipment for automatic operation
Equipment extensively with Siemens-components

Control
Siemens CPU 313C

Operation
Touch Panel TP 170B Bluemode

Connections
Waste water-inlet
Distillate-outlet
Concentrate-outlet
Exhaust air
Compressed air min. 6 bar

Options

Emptying pump
Automatic emptying of process tank

Automatic cleaning
Emptying pump
Fresh water-connection
Cleaning agent-dosing pumps
Process control

Remote maintenance by modem

Stainless steel housing

Documentation
Operation manual, Electrical-wiring diagram
