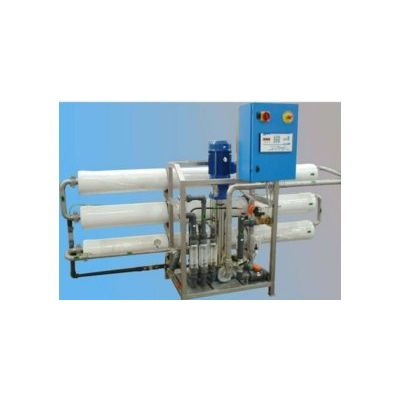

Model FA-Osmo -HD B AM -Average Capacities Reverse Osmosis Plant
MODEL FA-OSMO-HD B AM Reverse Osmosis Plant, (2 AM, 3 AM, 4 AM, 5 AM, 6 AM) housed in a frame constructed completely in AISI 304 Stainless Steel. Production Capacity: 2 cubic metres/hour - 6 cubic metres/hour.
Most popular related searches
reverse osmosis plant
reverse osmosis
reverse osmosis modeling
dosing system
vertical centrifuge
flow meter
dosing pump
PVC pipe
precision flow meter
high-pressure pump
- Number of membranes: From 2 to 6.
- Diameter of single membrane: 8"
- Type of membrane: Spiral wrap polyamide.
- Material: Thin Film Composite (TFC).
- Number of vessels: From 2 up to a number depending on the configuration of the plant. horizontal arrangement - length 40".
- Vessel material: AISI 316 L STAINLESS STEEL or FIBRE GLASS REINFORCED PLASTIC.
- High pressure lines: AISI 316 L pipes.
- Low pressure lines: High resistance PVC-PN16 pipes.
- Recirculation circuit: High resistance PVC-PN16 pipes.
- High-pressure motor-driven pump, multistage vertical centrifuge in AISI 316 L and AISI 304.
- Capacity measuring device: High precision kinetic flow meters in neutral transparent polyethylene with indelible gauge.
- Anti-limescale dosing unit: Electronic Dosing Pump with membrane and capacity adjustor.
- Electric control panel with PLC made of varnished plate with IP55 protection level.
