Sartorelli Depurazione S.r.l. products

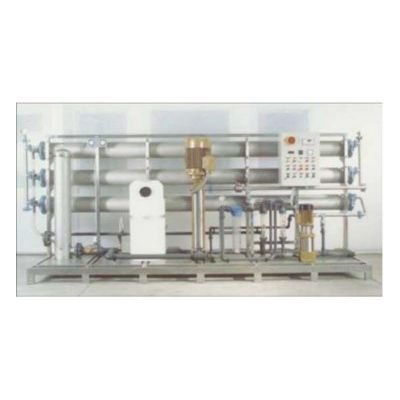

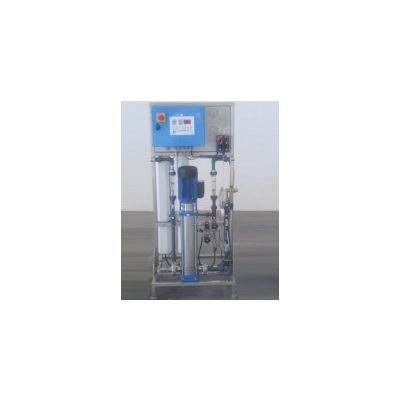

MODEL FA-OSMO-HD B AM Reverse Osmosis Plant, (2 AM, 3 AM, 4 AM, 5 AM, 6 AM) housed in a frame constructed completely in AISI 304 Stainless Steel. Production Capacity: 2 cubic metres/hour - 6 cubic metres/hour.

MOD. FA-OSMO-HD B AMP Reverse Osmosis Plant, (8 AMP, 10 AMP... 54 AMP) housed in a frame constructed completely in varnished carbon steel. Production Capacity: 8 cubic metres/hour - 55 cubic metres/hour

MODEL FA-OSMO-EASY Reverse Osmosis Plant, G A (1A, 2A, 3A, 4A, 5A) housed in a frame constructed completely in AISI 304 Stainless Steel. Production Capacity: 200 litres/hour - 1,000 litres/hour.

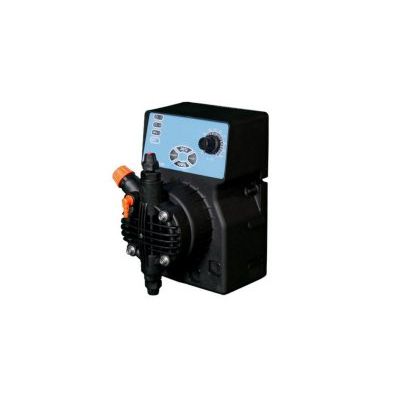

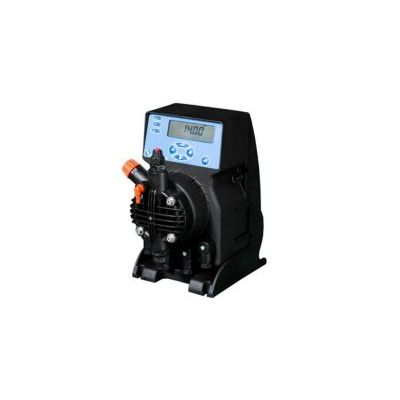

MODEL FA-DLX-pH-RX-Cl Electronic Dosing Pump with an inbuilt meter for monitoring and adjusting the pH, RX (mV) and chlorine (ppm) levels. The pump is equipped with a back-lit LCD display, and On/Off-proportional function.

Capacity: 1 - 80 litres/hour. Operating pressure: 0-20 Bar. Double-scale capacity adjustor. Pump casing manufactured in anti-corrosive plastic material. Polypropylene hydraulic head with manual drainage (standard operation - others on request). Teflon thrust membrane. Viton pump body valves. Electric circuit in a water-tight casing, protection IP65. Power supply protection directed to electromagnet piston. Power supply 230V 50-60 Hz single-phase. Electrical input: 30-75 Watts. MODEL FA-DLX-MA / AD pumps may be supplied pre-mounted on graduated 120 litre rigid polyethylene drums or on request on graduated drums of a different capacity.

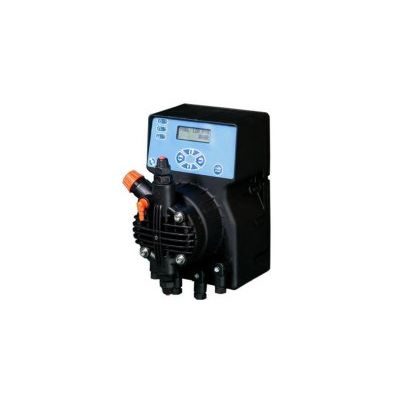

MODEL FA DLX-MF Multifunction Dosing Pumps with microprocessor where the dosage of the additive can be programmed in the following different operating methods:

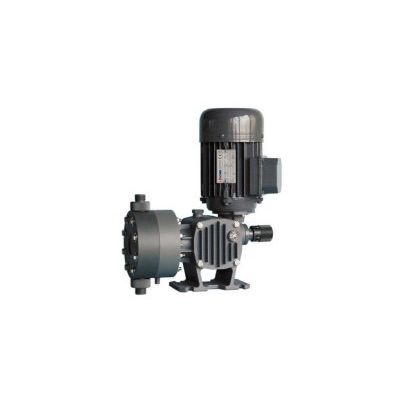

The MODEL FA-MP Motor-driven Dosing Pumps series with direct piston operation and the MODEL FA-MD with diaphragm with adjustable capacity from 10% to 100% allow extremely accurate dosing of any type of liquid or aggressive or non-aggressive substance (acids or basics).

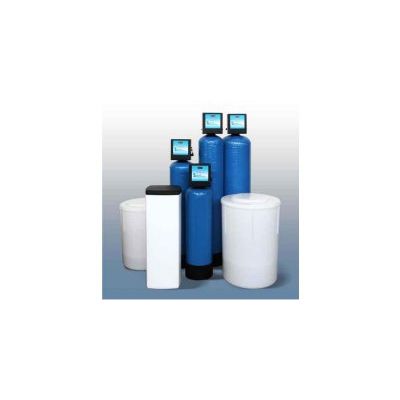

The MODEL FA-CAB TVE/TVE-CL Cabinet Water Softener is enclosed in its own casing and is manufactured in rigid polyethylene, non-toxic and shock-resistant, while MODEL FA TVE/TVE-CL is double tanked with a separate salt-water chamber. The water softener works by ion exchange using strong cation gel resins with high exchange capacity and certified for use with food that can totally eliminate or lower the overall hardness of the water. The cylinder containing the resin is made completely of non-toxic thermo-plastic material, coated externally with epoxy resin and reinforced with fibreglass. The operating unit is composed of a hydro-pneumatic five-phase valve with mobile pistons manufactured from non-toxic thermo-plastic material, designed for head installation.

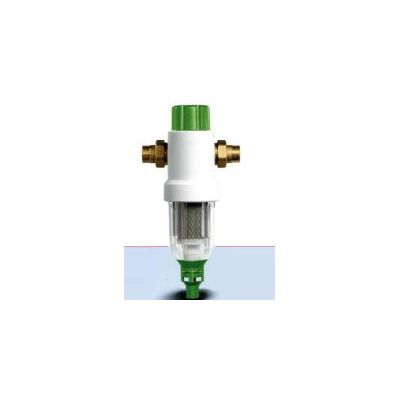

MODEL FA-BRAVOFIL semi-automatic self-cleaning filters with counter-washing and brushing system. The filter is composed of a brass fixing plate with threaded attachments diameter 3/4` - 1`, 1` 1/4, 1` 1/2, body in non-toxic plastic material, a clear bowl and stainless steel brushes. The filter element is composed of a stainless steel cartridge with a filtration level of 90 microns. Water flows into the filter, passes through the deviator, flows through the filter cartridge from the outside to the inside and then exits as filtered water.

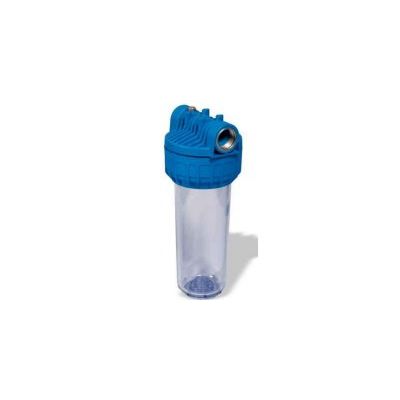

Single cartridge filter MODELS FA-1100 / 1101/ 1102 / 1103 / 1105 with non-toxic polypropylene head and ring nut, and threaded brass attachments and coupling diameters 1/2` - 3/4` - 1”, bowl with o-ring seal in clear polycarbonate lengths 5` - 7` - 10` - 20`. Single cartridge filter MODELS FA-1108 / 1110 with nickel-plated brass head and ring nut, attachments diameter 1` - 1`1/4 - 1`1/2 - 2`, bowl with o-ring seal in polycarbonate, length 10` or 20`. Filter Cartridges are made of washable nylon net with filtration levels from 10 to 150 microns.
