Terex
Model FD4000 -Front Discharge
FromTerex

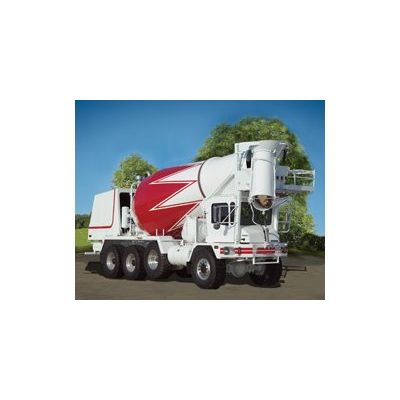

TEREX front-discharge mixers are renowned for having a higher discharge point and a longer reach, both of which allow for pinpoint discharge accuracy, greater speed and increased efficiency. They’re designed for maximum payload capacity and solid reliability, too. Two 4-axle front-discharge mixers are available: The Standard and The New York/Illinois.
Most popular related searches
- 10-yd3 mixer with 46-in opening
- Two configurations: the Standard 4-Axle and the New York/Illinois 4-Axle
- TEREX Workspace Cab with optional flip-down training seat
- 120-psi Water Tank – SAE Certified
- 212/255 Brinell Hardened Steel Drum
- Weights & Dimensions
- Permissible Gross Weight – 73,280 lb
- Empty Weight (Chassis and Mixer) – 31,550 lb
- Legal Concrete Load – 41,760 lb
- Water 150 Gallons – 1,250 lb
- Fuel 70 Gallons – 490 lb
- Front Driving Axle – 19,115 lb
- Pusher Axle – 20,000 lb
- Dual Driving Tandem – 34,165 lb
