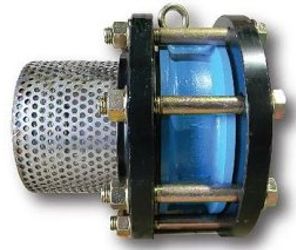

Model FV -Foot Valve with Inlet Screen
The primary purpose of a foot valve is to maintain the suction head in a vertical pump suction line and eliminate the need for priming a pump each time it is started. CVI`s check valves can be converted into an excellent foot valve by attaching our foot valve accessory package.
Most popular related searches
wafer check valve
dual disc check valve
check valve
flow control check valve
disc check valve
axial check valve
basket strainer
vertical pump
water hammer
strainer
- Excellent pressure loss and flow characteristics for control of suction head loss
- Dual Disc, single disc, and axial flow wafer check valves have high flow coefficients and low pressure loss.
- Strainer baskets are designed with an open flow area that is 150% of the pipe cross section area. Basket and cone designs are available with a variety of meshes or perforations for exceptional pump protection and maintenance of pump efficiency.
- Reliable Performance
- Light weight discs close prior to reverse flow and minimize water hammer pressure shock.
- Ductile iron body with stainless steel disc(s) and Buna seat for bubble-tight shut-off and prevention of suction head loss are standard. Other materials are available.
- Standard screen material is 1/8" perforated 304 SS. Other screen materials available upon request.
- Less Piping Stress
- Dual disc, single disc, and axial flow wafer check valves weigh as much as 75% to 85% less than standard swing check designs.
- Slip on flanges provide lower weight and ease of installation.
- Ductile Iron body is standard. Many variations of materials are available upon request, consult factory.
- Springs are removed to increase the responsiveness of the discs.
- Due to suction lift requirements for the pump, valves open 80% and fall to close quickly once flow ceases.
- Variety of trim and seat materials are available. See "Figure Number Information" chart in dual disc brochure.
- Standard strainer screen is 1/8" perforated 304 SS. Other screen materials, perforations and meshes are readily available as specified.
- Slip on flanges provide ease of installation. Class 125 pattern is standard, 150,250. 300, 600,900,1500 are also available.
- CVI`s foot valve assembly is normally installed in vertical up-flow piping. It can also be installed in horizontal piping. When installing a dual disc check valve in horizontal piping, always insure that the hinge shaft is in a vertical position.
- For long service life, CVI`s check valves are to be sized to insure that the liquid flow rates comply with the recommended minimum and maximum flow rates shown in CVI`s check valve product literature-
