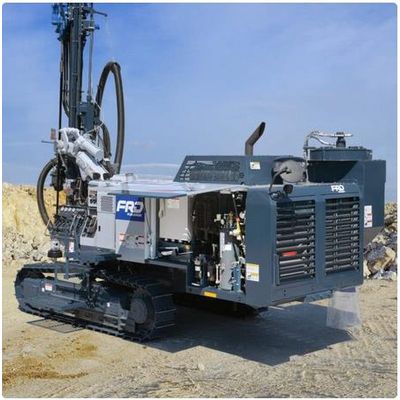

Furukawa - Model HCR1100-ER -Top-Hammer Rock Drill
HCR1100-ER ROCK DRILL – BETTER PENETRATION WITH INCREASED IMPACT. The HCR1100-ER drill incorporates innovative features for higher output and is capable of drilling at larger diameters. Utilizing a Cummins® Tier-IV EPA compliant engine, the HCR1100-ER combines higher performance with fuel efficiency. The Furukawa HD822 drifter (patent applied for) is designed to minimize drill noise and vibration, while increasing performance. With 26.7% more impact and 13% more airflow than its predecessor, this drill has the ability to perform in harder rock at a larger diameter.
Most popular related searches
water dust control system
rock drilling
water dust control
dust control system
noise and vibration
dust suppressant
dust control
drill hammer
drilling rock
EPA compliant
- The improved electro-hydraulic controls allow easier operation.
- With FRD’s TFSS (total fuel savings system), the operator selects the optimum engine speed for the application, allowing all fuel savings functions to be automatically managed during drilling operation.
- The monitoring system incorporates gauges next to the drilling station, allowing the operator a quick visual of engine temperature, hydraulic oil temperature and fluid levels.
- Automatic rod changer eliminates the need for operators to manually install drill steel, resulting in increased production and enhanced operator safety.
- Upgraded compressor increases free air delivery by nearly 28% to accommodate larger diameter drilling.
- Winch-ready frame adds application versatility.
- Optional wireless remote allows tramming and drilling from a secondary location.
- Operating weight with fuel & oil in lbs. (kg): 27,500 lbs (12,460 kgs)
- Travel speed: 0 - 2 mph (0 - 3.2 km/h)
- Maximum traction force: 19,700 lb-force (88 kN)
- Maximum grade of hill climb: 57.7% (30°)
- Oscillating angle: ±7.6°
- Ground clearance in inches (mm): 23″ (585 mm)
- Ground contact pressure *3: 11.2 psi (77.3 kPa)
- Water / Dust Suppression System – 35 gal
- Water / Dust Suppression System – 70 gal
- Remote Control
- 2D Angle Indicator
- Rear Bumper
- Cold Weather Kit (Esper, Webasto)
- Heating Pad
