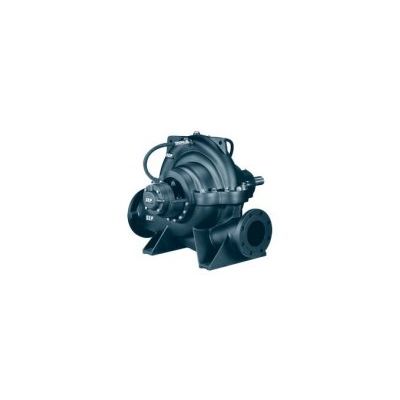

Model GDS -Double Suction Split-Case Pumps
They are horizontal shaft, single stage, end suction pumps with radial/mixed flow closed impeller SEP GDS series pumps are manufactured different types from DN 80 to DN 350. SEP GDS series pumps are adventages other pump types: Minimal axial thrust due to double- entry impellerL. Quick and easy assembly/dismantling of the rotor components due to elastically prestressed mountings. Short and rigid with negligible vibrations. For sealing, standart applications use soft seals are used and the lubricating is performed according to API PLAN 1. Alternative Applications. Package type sealing / Mechanical Seal, alternative cooling systems.
- Raw Water Supply
- Drinking Water Supply
- Industrial Applications
- Irrigation
- Hot Water Circulation
- Cold Water Circulation
- Sea Water
- Pool Water
- Condense Systems
- Fire Fighting Systems
- Petrolium combinations and Fluids without solid particals
Capacity (Q): Upto 3500 m³/h
Manometric Height (Hm): Upto 120 mWC
Operating Temperature (t): From -20 °C to +140 °C
Operating Pressure (Pmax): 16 bar (standard), 40 bar (special cases)
They are horizontal shaft, single stage, end suction pumps with radial/mixed flow closed impeller SEP GDS series pumps are manufactured different types from DN 80 to DN 350.
SEP GDS series pumps are adventages other pump types:
- Minimal axial thrust due to double- entry impeller
- Quick and easy assembly/dismantling of the rotor components due to elastically prestressed mountings.
- Short and rigid with negligible vibrations
For sealing, standart applications use soft seals are used and the lubricating is performed according to API PLAN 1.
