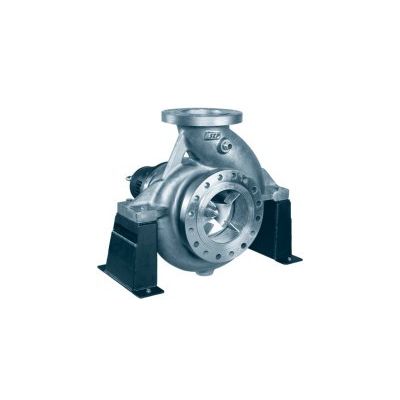

Model GN HW -Hot Water Pumps

1. Petroleum refining, production and distribution
2. Petrochemical and demanding chemical processing
3. High temperature applications including boiler circulation
4. General industrial applications requiring high temperature and high pressure
5. Geothermal Power plants

• Capacity (Q): Upto 1800 m³/h
• Manometric Height (Hm): Upto 100 mWC
• Operating Temperature (t): Upto 200 °C
• Operating Pressure (Pmax): 40 bar

The single stage centrifugal GNHW series pumps are designed according to the ISO/API standards and manufactured with OH1/OH2 construction features by SEP PUMP. These process pumps with their approved quality, they cover a wide hydraulic range and various classifications of the standards.

High performance characteristics, long operational life, spare parts suplly / delivery /interchangibilty makes them dependable for critical application fileds.

GNHW series pumps can be manufactured with various material combinations classified by API standards according to operational conditions and tender clausses.

For the sealing system, depending on the process conditions, single or double sided ISO 21049/API 682 John Crane mechanical seals are used.

The base construction is possible in two ways either bottom mounting (OH1) or mid horizantal axis mounting (OH2).

They are end suction, single stage, radial / mixed flow closed impeller rotadynamic pumps and generally used in horizantal positioning.

Thanks to their design features, it is possible to disassemble the bearing support + shaft + impeller without disassembling the pump body from base. Although in our production standard, elactic couplings are used, if necessary to provide easy disasseble/ assemble, "spacer type" elastic couplings can be used.
