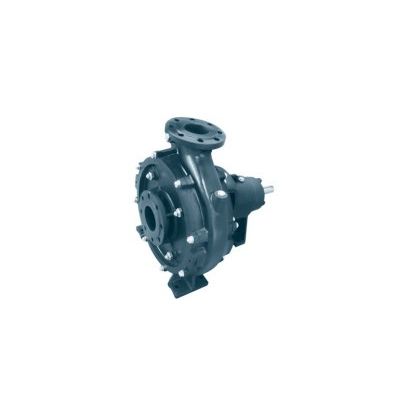

Model GP - Single Stage Process Pumps
They are used to pump the process fluids containing limited solid particals in.
They are horizontal shaft, single stage, end suction pumps with radial / mixed flow open impellers.
By means of the front wear plate which is machined with the same profile of the impleller, the clearance adjustment is easly made for high performance.
SEP GP series pumps cover a very range of constructional solution including 29 type of TS-EN 733, besides additional to this standard they have 8 more different types which are not described in TS-EN 733.
SEP GP series pumps can be disassembled (bearing support, shaft and the impeller) without disassembling the volute from the system. All the SEP pumps on standard conditions are coupled to the motors by means of elastic ? rubber pad couplings. Optinonally, 'SPACER TYPE' couplings can be used to provide quick and economic disassembling.
According to the pumped fluid specifications, the pump dimensions, and operating conditions the bearing construction of SEP GP series pumps can be easily upgraded from grease lubricated, side closed ball bearing type to heavy duty and/or high realiabilty bearing applications and alternative lubricating systems.
On standard applications SEP GP series pumps are desiGPed to use soft sealing package type systems and cooling of the sealing system is made according to the API PLAN 1.
- Industrial Water Supply
- Petrochemical Industry
- Petrolium and composites
- Chemical Processes
- Agressive Fluids
- Abressive Fluids
- High Viscosity Fluids
- Enviromental Eng. Processes
- Capacity (Q): Upto 650 m³/h (1450 rpm)
- Manometric Height (Hm): Upto 100 mWC
- Operating Temperature (t): From -20 °C to +140 °C
- Operating Pressure (Pmax): 16 bar
