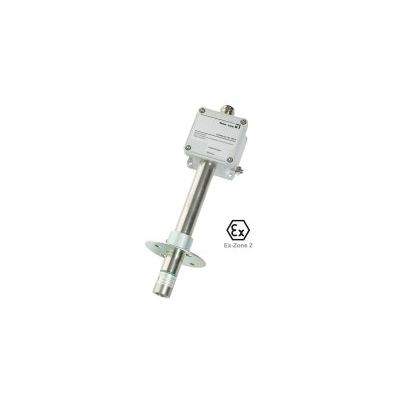

Model HC 150-K -Explosive Gas Detectors
FromBieler Lang GmbH
The ExDetector HC 150-K is designed for use in ducts. It is used to measure the current concentration of explosive gases and vapors. The ExDetector HC 150-K detects explosive gases and vapors within a range of 0 %-100 % LEL. It uses the principle of catalytic combustion (heat of reaction). It also satisfies all the criteria for use in explosion zone 2 and areas of SIL-1 functional safety.
Most popular related searches
explosives detection system
lower explosive limit
explosive gas detector
explosive gas detection
gas detection system
explosive gas
vapor detection
explosives detection
safety data
Technical data
- Detectable gases: explosive gases and vapors
- Detection range: 0 %-100 % LEL (lower explosive limit)
- Functional principle: catalytic combustion (heat of reaction)
- Linear measuring signal 4-20 mA
- Use in explosion zone 2:
- II 3G
- Ex nA de IIC T4
- PTB 10 ATEX 1023
- One-man calibration, direct calibration on detector
- 3-wire technology
- Controllers:
- GMC 8022
- GMC 8022 E
- GMC 8364
- GMC 8420
