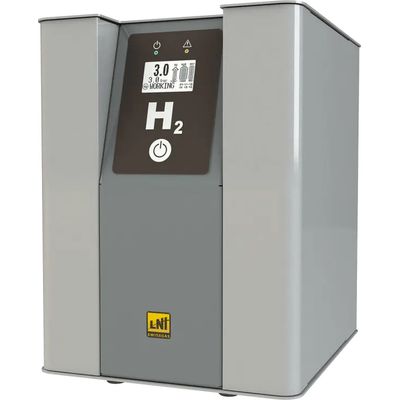

Model HG Kube -PEM Hydrogen Generator

The innovative static drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to it’s unique humidity safe guard, it is completely maintenance-free and allows continuous operation, 24 hours a day. The on-board CPU automatically check for internal leaks and constantly control the operating parameters to guarantee full safety.

Up to 20 units can be connected in parallel mode using an external control box. The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit.

• PEM cell
• Flow rate up to 260 cc/min
• Pressure up to 9 bar (130 psi)
• RS-232 port standard
• Purity: 99.9996%
• Static dryer no maintenance
• Safety routine and self monitoring
• Reduced foot print
• Smart humidity safe guard (patented)
• High pressure GLS electronically controlled (patented)

• GC-FID
• GC-NPD
• GC-FPD
• GC-PFPD
• THA
• Gas sensing

General data

• Electrolytic cell: PEM technology
• Drying system: Static dryer
• H2 purity: >99.9996%
• Outlet pressure: 9 bars (130 psi)
• H2 flow-rate (Max): 260 cc/min
• Dimensions: 25 x 30 x 35(H) cm
• Net weight (no water in tank): 10.5 kg

Communication

• RS232: Standard
• RS485: Optional

Software functions

• Parallel mode: Optional

Water

• Quality Required: Deionized, ASTM II, <0.1uS
• Internal tank capacity: 1.2 L

Electrical data

• Type of connection: IEC 320-C13 (desktop adapter)
• Power supply voltage: 100-240 Vac 50/60 Hz
• Installed power (Max): 160W

Connections

• Hydrogen outlet: 1/8” compression fitting
• Water: Quick release push-in fitting

Operating/storage conditions

• Working Temperature: 5-40°C (41-104°F)**
• Storage Temperature: 1-50°C (34-122°F)
• Humidity (max, non condensing): 70%
• Noise: < 25dB(A)
• IP rating: IP20
• Pollution degree rating: 2 (with no aromatic compounds)
• Altitude: < 2000m

** with temperature > 35°C the H2 purity could be less
