Model HI 5800 -Electronic Vibration Monitoring Switch

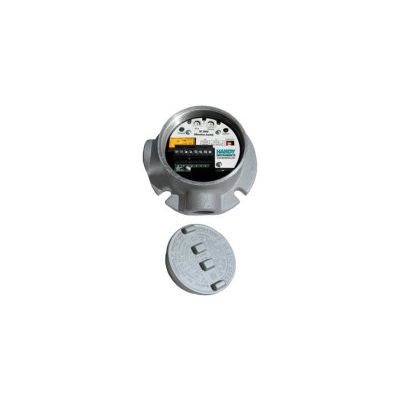

The Hardy HI 5800 The HI 5800 Switch provides high-end vibration protection in a small, lowprofi le package. When you mount it directly to your rotating or reciprocating equipment, it monitors signs of vibration and activates onboard relay when a high-level is reached.
This switch uses a piezoelectric crystal and state-of-the-art electronics to provide the highest degree of precision in this stand-alone monitoring system. Both the vibration level and the alarm time delay can be set in the HI 5800 via two adjustment ports on the front of the switch. The time delay will prevent nuisance alarms or shutdowns in the case of an inadvertent spike in vibration.
Alarm indication is provided via a bright LED on the switch, and the reset can be performed either locally or remotely. A Power LED provides indication of proper switch operation.
- Adjustable vibration set point and time delay
- Failsafe operation through onboard relay
- Local LEDs for alarm and OK indication
- Remote or local alarm reset
- Trip bypass for equipment start-up
- Cooling Towers
- Reciprocating Compressors
- Reciprocating Engines
- Industrial Fans
- Centrifugal Pumps
- Motors
- Gear Boxes
Environmental:
Temperature: -25°C to 85°C
Humidity: 0-95% non-condensing
Vibration: 15 g max @ 500Hz
External Power:
Supply voltage: 20-32 Vdc
Supply current: 100mA max
Frequency Response:
6-500 Hz, +/- 5%, on-board sensor version
6-1,000 Hz, +/- 5%, external sensor version
Alarm Level and Time Delay
Potentiometer for fi eld adjustable alarm level
Alarm level range of 0.1 - 1.5 ips
Potentiometer for fi eld adjustable time delay (0-10 seconds)
Output Relay:
Normally-open and normally-closed outputs
Contacts rated for 30Vdc, 1A and 120 VAC, 1A
Isolation voltage (contacts to signal ground): 500 VAC
Latching / non-latching output selected by user
Failsafe or non-failsafe operation selected by user
LED Outputs
Alarm LED output: LED illuminated solid while in alarm mode. LED blinks if above setpoint but not yet alarmed
Power LED output: green LED, always illuminated when power is applied
Reset Input
Activated by external N.O. relay or push-button contact
Reset activation time: 0.5 sec. minimum
Reset current < 10 mA
Approvals:
UL/CUL, Hazardous Class I, Div 1, Groups B, C, D,
Hazardous Class II, Div 1, Groups E, F, G
