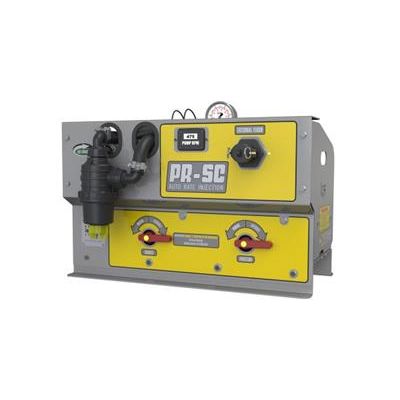

Model LQS-PR-SC -Compact Entry Level Single Liquid Auto-Rate Pump and Control Module
The PR-SC like the PR-1 is a compact entry level single liquid auto-rate pump and control module suitable for retrofitting onto drawbars of row crop planters. However, it also includes section valves (from 2 to 8) attached to the rear of the module and Stacker manifolds to match. This makes for really simple installation of a complete, section control enabled, in-furrow liquid injection system delivering precision, accuracy, flexibility and efficiency.
Most popular related searches
piston diaphragm pump
pump controller
water source
flow meter
pressure transducer
pressure gauge
ball valve
diaphragm pump
digital metering pump
filter cleaning
- Function: Single liquid rate control
- Max. Output: 76 L/min 20 Ga/min (US) 16.7 Ga/min (Imperial)
- Dimensions: W 814mm x D 1000mm x H 910mm (module & mounting assembly, excluding U-bolts)
- Weight: 160kg (module and mounting assembly) (approx. depending on number of sections)
- Pump: Hydraulically driven 76 L/min (20 US Ga/min) LQS Enhanced piston diaphragm pump
- Hydraulics: 27.5 L/min 7.3 Ga/min (US) 6.0 Ga/min (Imperial)
- Electrical: 12V 1.3A
- factory wet tested
- precision valve set incorporating TeeJet ball valves and flow meter
- digital pump speed readout
- pressure transducer and module mounted pressure gauge
- suction filter
- fertiliser/ clean water source selection
- purge function
- compact design for planter retrofit
- includes section valves, Stacker manifolds and plumbing kit
- mapping based variable rate control and section control when integrated with leading precision ag displays
