Model LTC4 -Refrigerated Circulating Baths

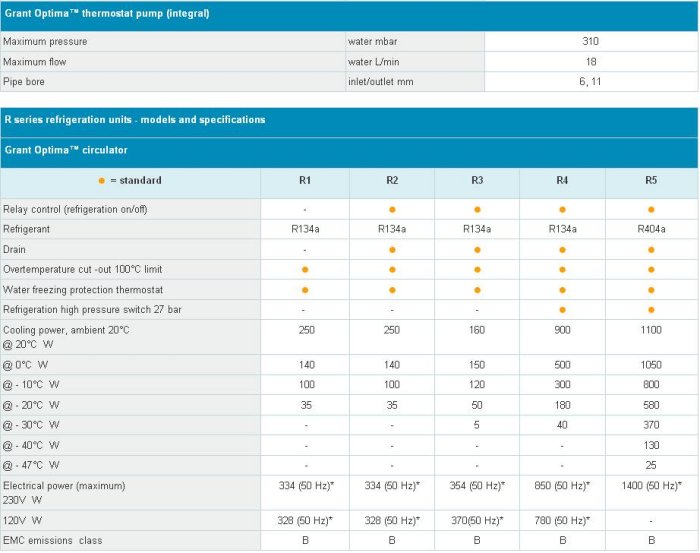

The Grant Optima™ LTC4 Kit includes TX150 heating circulator and R4 tank/refrigeration unit:

TX150-R4

• 20 litre tank with drain tap
• refrigeration high pressure switch
• relay control for refrigeration on/off*
• cooling power 500W @ 0°C
• temperature range -30 to 100°C

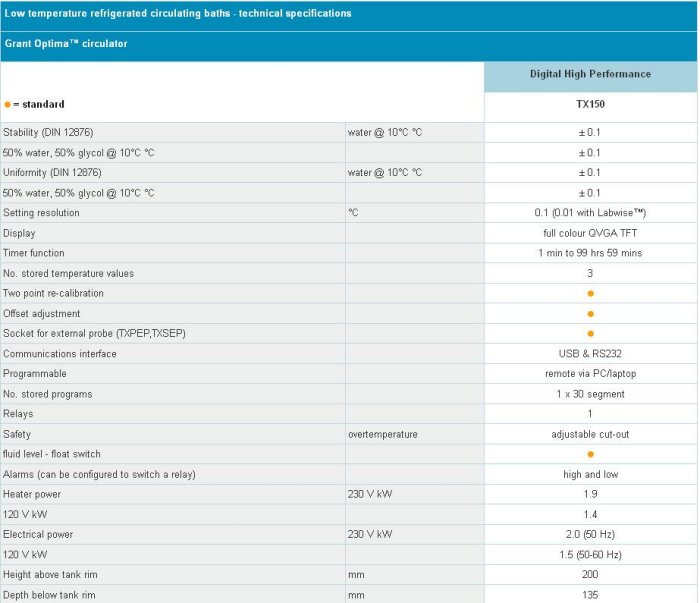

The Grant Optima™ TX150 series of digitally controlled refrigerated circulating baths provides outstanding performance for routine and sophisticated applications requiring accurate temperature control in the range of -47 to 100°C.

Grant GR150 series refrigerated systems combine the powerful and versatile Grant Optima™ digital heating circulator TX150 with a rugged stainless steel refrigeration unit with different facilities and working volumes.

The Grant Optima™ TX150is high-performance programmable digital heating circulator with an exceptionally simple user interface. This allows fast set-up of multiple parameters through a powerful menu system and provides sophisticated control for temperature-controlled applications.

The TX150 has USB connectivity to a PC or laptop. It is programmable with Labwise™, a software program to set all parameters, including programs, via the PC. Labwise™ also features real-time status windows, a graphic display of the controller`s performance as a program is run, and allows data to be logged for future recall and analysis.

• Powerful pump for external circulation, maximum flow 18 L/min, maximum pressure 310 mbar
• Full colour QVGA TFT diplay
• Setpoint, plus three adjustable preset temperature values
• Timer function for reaction timing, 99 hours, 59 minutes, with audible alert and heater control
• Liquid selection safety feature adjusts for temperature range or heater power
• Fault indication display
• Programmable relay
• Two-point user recalibration of internal and external probes (TXPEP, TXSEP)
• Off-set adjustment for optimal isothermal performance
• USB connectivity
• Optional Labwise™ PC software for program set-up, data-logging and real-time graphing
• Can be programmed to switch the refrigeration on and off during a heating and cooling program
• Memory capacity for one program of up to 30 segments
• Choice of languages: English, French, German, Spanish and Italian
• Low liquid protection by float switch
• Adjustable over-temperature cut-out
• Convenient accessory clamp available for fitting to vessels
• Cooling/heating range: -47 to 100°C (dependent on refrigeration unit selected)
• Stability ± 0.1°C

Note: The refrigeration unit can be switched off indepedendently of the circulator to allow heating only applications. All the refrigeration base units can be used up to a maximum temperature of 100°C.

* Optima™ circulators and accessory pumps can be powered from the back of the R1, R2 and R3 220-240 V refrigeration units. Allow up to 2 kW of extra power from the electrical supply

** The optional VTP pumps will transfer additional heat to the baths and reduce the net cooling power of the refrigeration unit. The above figures must be taken into consideration when choosing the refrigeration unit

Note: when ordering a VTP pump, please specify which refrigeration base unit it is to be used with
