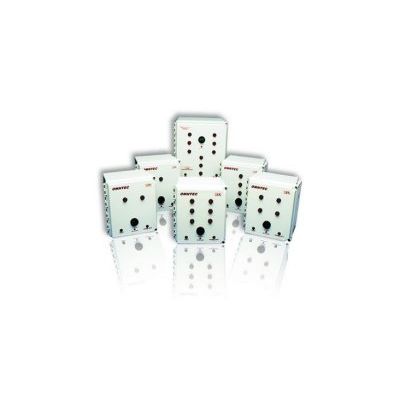

Model LU2 -Leak Detection and Overfill Alarm Systems
OMNTEC’s LU and LPD leak-detection and overfill-alarm systems provide continuous, accurate monitoring in a variety of applications. Typical applications are reservoirs, sumps, dry interstitial spaces and dispenser pans. These easy-to-install controllers alarm for in tank levels and leak conditions. The LU controllers are capable of accepting up to 9 sensors for high level and leak detection. The LPD controllers are capable of accepting up to 9 sensors for in tank levels and product distinguishing leak detection. The electro-optic sensors used with these controllers allow users to easily cycle all sensors through a simulated leak, with the press of a single button. This feature eliminates the need to remove the sensor from its location.
An alarm condition is visually signaled by a dedicated LED indicator, which remains lit until the alarm condition is corrected. Alarm conditions are audibly annunciated via a 95-decibel piezoelectric pulsing horn. RA-series remote annunciators add high-level remote audio-visual alarms without the need for external AC power.
The LU-SP series controllers accommodate a variety of special applications.The NEMA 4X rating of the LU and LPD series controllers indicates a weatherproof, corrosion-resistant product. These controllers are ruggedly constructed to provide reliable and cost-effective performance.
- NEMA 4X weatherproof, corrosion-resistant
- Remote sensor testing
- Acknowledge switch
- Test switch
- System detect light
- Easily installed
- Low-voltage remote annunciator outputs
- Relay outputs (See Specifications)
- LED indicators rated MTBF 11 years
- Specific sensor LED
- Inputs accept either high level, caution level or
- leak sensors
- Low level alarm (LPD controllers only)
- Distinguishes liquid hydrocarbons
- from water (LPD controllers only)
- Removable sensor input connectors
- U.L. listed
- Third-party certified
- Cost effective
- Modified controllers for special applications
