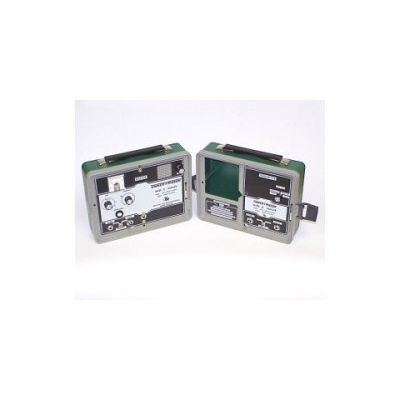

Model MARK V -Dual Frequency Locator
FromTinker & Rasor
The Mark V Ranger can do it all: Finds shorts & opens, locate buried insulators, locate unknown pipes, locate unknown structures. Audio & Radio Frequencies, holiday inspections on buried pipes, accurate depth location, Inductive Operation, Conductive Operation, ECDA tool, Peak Method, Null Method.
Most popular related searches
- Radio and audio frequency
- Inductive or conductive operation
- On handle to find unknown structures
- Interrupter feature on transmitter
- Very accurate depth location (triangulation)
- RF Pipe & Cable locator (Short Locator)
- Holiday detection of buried pipe (Pearson Method)
- Volume control
- Battery operated
- Rechargeable NiCad batteries available (optional)
Mk V/S "Short Locator" comes with:
- Mark V "Ranger" Instrument
- Adapter, TS/8 to Ranger
- Headphones with adapter
- Connecting Cables
- Ground Plate
- Carrying Case
- (12) "C" Cell Batteries
Mk-V/H Complete comes with everything the MK-V has plus:
- Cable Cleats (Set of 4)
- Cable Connecting Leads - 20`
- Shoe Cleats (2 pairs)
- Terminal Board Single Connect PD
- Terminal Board Double Connect PD
Environment:
0ºC to 50ºC (32ºF to 122ºF)
Dimensions:
- Transmitter-11.375" x 8.5" weight 3.3 lbs. (289mm x 216mm x 76mm, 1.36kg)
- Receiver- 11.375" x 8.5" weight 3.4 lbs. (289mm x 216mm x 76mm, 1.81kg)
