Tinker & Rasor products

The Model M/1 Holiday Detector is a highly sensitive device designed to locate holidays. (pin holes, voids, etc.) in thin film protective coating of relatively high electrical resistance when such films are applied to the surface of material of low electrical resistance. In these applications, such as painted metal surfaces, the Model M/1 Holiday Detector will locate these points very accurately with an audible signal. This method of inspection of thin film is a non-destructive test and will not injure the protective coating.

45/90 Audio Locator Handheld Probe. Works With Both Mark IV & Mark V Kits! Easy to operate, unaffected by surface cover, light weight, telescoping handle, water resistant!

The Mark V Ranger can do it all: Finds shorts & opens, locate buried insulators, locate unknown pipes, locate unknown structures. Audio & Radio Frequencies, holiday inspections on buried pipes, accurate depth location, Inductive Operation, Conductive Operation, ECDA tool, Peak Method, Null Method.

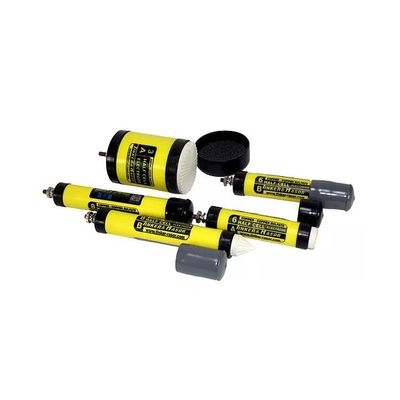

Tinker & Rasor offers a complete line of Copper-Copper Sulfate Half Cell Reference Electrodes. All Tinker & Rasor HALF CELLS are made from the most durable materials available, to withstand years of harsh, even severe field use! These fully "serviceable" Half Cells can be recharged to assure accurate readings for many years. Replacement "Tips" and supplies are available from stock.

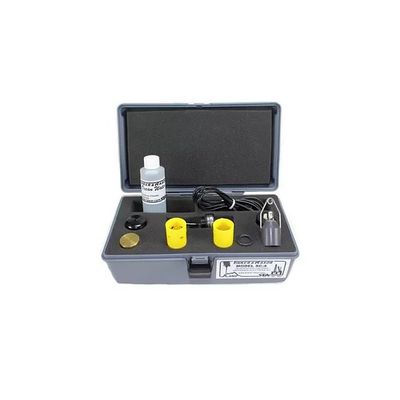

The Model SC-4 Sliver-Silver/Chloride kit come complete with everything necessary to conduct field tests both ON SHORE and OFF SHORE. Model: SC-4 Reference Electrode Kit. Silver-Silver/Chloride (AgAg/CI).

The ACT is the ultimate amp clamp companion. Newly designed, the ACT is very accurate and an easy to use verifying device. Using the ACT, your amp clamp or multimeter is fed 1.0 Amp or 0.5 Amp DC, quickly verifying your reading. The Tester’s accuracy exceeds most amp clamp accuracy, with a ±5% accuracy. The Tester features a built-in rechargeable battery, two banana jacks for the current loop for testing amp clamps, or connecting a multimeter. Use the ACT on all popular current meters and amp clamps.

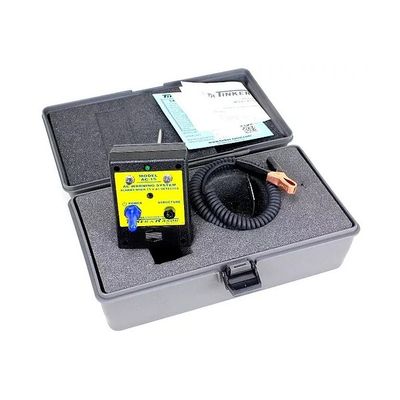

Model AC-15 Warning System Measurement of AC Voltage potentials between structure and ground for job site safety of personnel. The AC-15 A/C Warning System is an instrument which detects potential differences of 15V AC or more on a structure (NACE International SP0177-2007) Designed for pipelines running through high voltage electrical transmission corridors (right of ways). AC voltage alarm begins to sound at 7 volts AC or greater is detected the instrument goes into alarm with both audible and visual alerts.

The CS-1 portable Magnesium Anode Simulator is an ideal DC current source that will allow the user to see what the addition of a magnesium anode on their system will do to Pipe to Soil measurements and other C.P. tests.
