Model NdFeB -Grain Boundary Diffusion Magnet

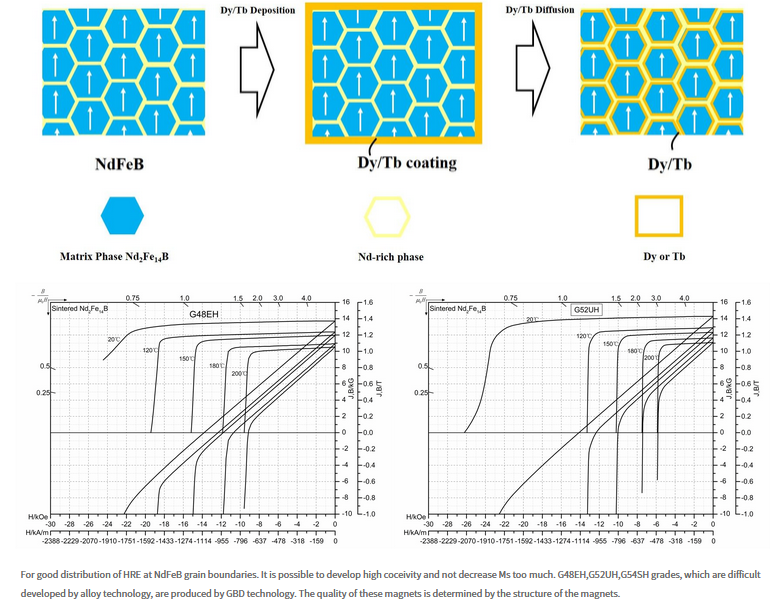

Mass production of high-performance NdFeB magnets with magnetic properties (BH) max+Hcj≥75, such as grades of G45EH, G48EH, G50UH, G52UH. Cost of GBD magnets is lower than that produced by conventional technology by more than 20%.  Magnet Power team has developed both spraying and PVD processes. And we have mature technological processes and strict management systems. The GBD technology is suitable for NdFeB materials with a thickness of less than 10mm.
