Model Odoroxidant SP -Broad-Spectrum Contaminant Oxidation Media

Odoroxidant sp media demonstrate a higher working capacity for broad-spectrum oxidation of contaminants in actual field conditions, where multiple gas challenges are present The Purafil SP Series has been specially engineered to contain more permanganate (the active ingredient) for increased removal capacity, allowing the media to remain more available for removal of target gases. Odoroxidant` SP (patent-pending) Media demonstrates a high removal capacity for sewerage gases, including hydrogen sulfide, aldehydes, sulfur dioxide and many organic compounds.

Most popular related searches

deep bed scrubber

Media Specification

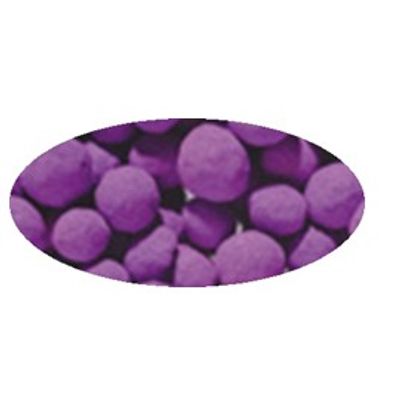

Purafil ESD`s Odoroxidanr SP Media shall consist of manufactured, generally spherical, porous pellets. Pellets shall be formed from a combination of activated alumina and other binders, suitably impregnated with sodium permanganate to provide optimum adsorption, absorption and oxidation of a wide variety of gaseous contaminants. The sodium permanganate shall be applied during pellet formation, such that the impregnant is uniformly distributed throughout the pellet volume and is totally available for reaction.

The Chemisorptive Process
The Purafil chemisorptive process shall remove contaminant gases by means of adsorption, absorption, and chemical reaction. Gases shall be trapped within the pellet where oxidation changes the gases into harmless solids, eliminating the possibility of desorption.

Removal Capacity
Purafil ESD`s Odoroxidanf SP Media shall meet the following removal capacities:

HYDROGEN SULFIDE: 14.0% min. by weight
SULFUR DIOXIDE: 7.0% min. by weight
NITRIC OXIDE: 7.0% min. by weight
FORMALDEHYDE: 4.0% min. by weight

Physical Properties
Purafil ESD`s Odoroxidanf SP Media snail nave trie following physical properties:

MOISTURE CONTENT: 35% Maximum
CRUSH STRENGTH: 35% - 70%
ABRASION: 4 5% Maximum
BULK DENSITY: 50 lbs/ft3 (0.8 g/cc) ±5%
PELLET DIAMETER: 1/16" -1/8" (1.5 mm-3.2 mm)
SODIUM PERMANGANATE CONTENT: 12% Minimum

Applications
Odoroxidanr SP Media is designed for the removal of odorous gases pervasive in wastewater operations. Trie media is used in conjunction with other Purafil ESD media and serves to polish remaining odorous gases before discharge to the atmosphere.

Advantages

Landfill disposable
UL Classified Class 1
New and spent media is non-toxic
Will not support bacterial or fungal growth

Application Guidelines
Odoroxidanr SP Media shall perform effectively under the following conditions and guidelines:

TEMPERATURE: -4°F to 125°F (-20°Cto5rC)
HUMIDITY: 10 - 95% RH
AIRFLOW: Odoroxidanf SP Media shall be effective in Purafil ESD systems, including the Drum Scrubber with airflows from 100 to 1,000 CFM (170 to 1699 mVhr), Tub Scrubber with airflosvs from 500 to 6,000 CFM (850 to 10.194 mVhr) and Deep Bed Scrubber with airflosvs from 600 to 8,000 CFM (1,020 to 13,592 mVhr). Odoroxidanr SP Media shall also be effective in Vessel Scrubbers with airflows from 8,000 to 20.000 cfm (13,592 to 33,980 mVhr).

Disposal Requirements
Spent Odoroxidanr SP Media shoukJ be disposed of according to local, state and federal guidelines.
