Model P1 -Single Stage Pressure Reducing Regulator

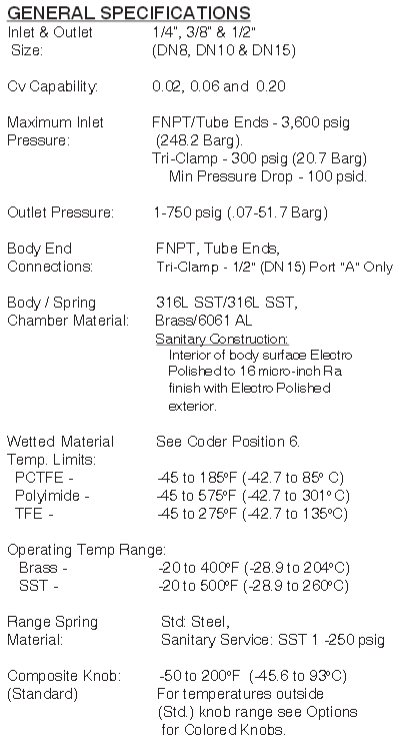

The Model P1 is designed for gases and liquids with inlet pressures up to 3600 psig (248 Barg). Standard adjustable outlet ranges from 1-10 psig (.07-.69 Barg) thru 10-750 psig (.69-51.7 Barg). Flow coefficient of 0.02, 0.06, and 0.20 avail able. This ver sa tile point of use reg u la tor can be ordered with a variety of op tions to meet your sys tem demands. Standard construction includes 40 mi cron integral filter and diffusion resistant stainless steel diaphragm.
