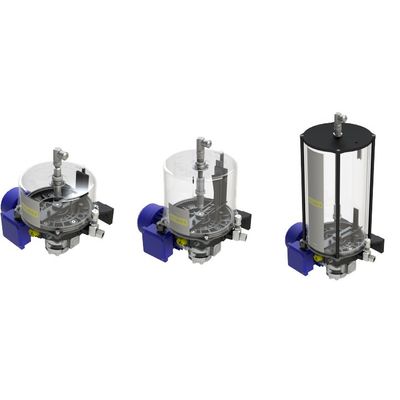

Model PEG PEO -Electropumps for Progressive Systems
PEG/PEO 520/540/580 are ideal for automatic lubrication of any kind of industrial systems. Along with progressive dividers DPL, DPX e DMX, they can lubricate more then 300 points using a single pump.
Number of outlets: from 1 to 3
Discharge for cycle (fixed discharge pump): 0.16 cc
Discharge for cycle (adjustable discharge pump): 0.01 - 0.16 cc
Lubricant: Greases up to NLGI 2 max consistency, Mineral Oils 50-1500 cSt
Max working pressure: 350 Bar
Reservoir capacity: 2 kg, 4 kg or 8 kg
Temperature: from -40 °C to +80 °C
Discharge port: 1 / 4" G
Float switch electrical level (grease): 1.5 A 250 V AC – 200 V DC 50 W resistive load
Supply voltage da 10 a 30 V DC (Ripple incluso)
Ripple =<10%
Load current =>300 mA
Absorption =< 12 mA
Voltage drop =< 2.8 V DC al carico Max
Electrical protection inversione di polarità e corto circuito
Activation frequency 25 Hz
Contact "NO"
Temperature da -25° C a + 70° C
Protection degree IP 67 (Nema 1,3,4,6,13)
Cable 2 m, 3x0.25 mm ² , PVC grigio antiolio
Approvals UL / CSA (su richiesta)
Marking (CE) yes
