Model PL-68/PLL-122/PL-525 & PL-625 -Effluent Filters

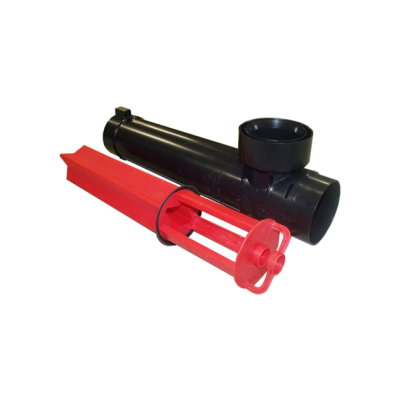

PLL-122:

• First filter developed by Polylok.
• Automatic shut-off ball built into every filter - when the filter is removed for cleaning, the ball will float up and temporarily shut off the system so the effluent won`t leave the tank.
• Rated for 1,500 Gallons per day.
• NSF approved.
• Has its own gas deflector ball which deflects solids away
• Installs easily in new tanks, or retrofits in existing systems
• Comes complete with its own housing. No gluing of tees or pipe, no extra parts to buy
• Has a modular design, allowing for increased filtration
• Alarm accessibility
• Accepts PVC extension handle
• Comes with either pipe adapter or filter seal adapter

PL-525:

• Commercial filter.
• Rated for over 10,000 Gallons per day (one of the largest in its class).
• 525 linear feet of 1/16" filtration slots.
• Has an automatic shut-off ball installed with every filter - when the filter is removed for cleaning, the ball will float up and shut off the system so the effluent won`t leave the tank.
• Alarm accessibility.
• Accepts 4" and 6" Sch.40 pipe.

PL-625:

• Rated for 8,000 GPD (gallons per day).
• 625 linear feet of 1/32” filtration.
• Accepts 4’’ and 6’’ SCHD 40 pipe.
• Built in gas deflector.
• Automatic shut-off ball when filter is removed.
• Alarm accessibility.
• Accepts PVC extension handle.
• Ideal filter for grease trap applications.
• The 1/32" filtration has been shown to reduce fats, oils, and grease by 60-98%.
• May be used in onsite wastewater systems that require a finer level of TSS removal.
