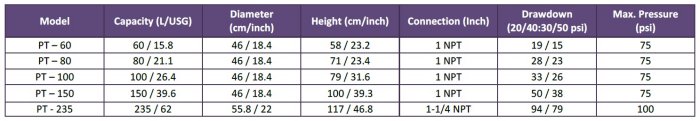

Model PT Series -Pressure Tanks

The PT Series freestanding, captive air pressure tanks are all equipped with an EDPM diaphragm with a 75 psi maximum working pressure, tested to 100 psi. (PTB235 100 psi max. working pressure, tested to 150 psi)

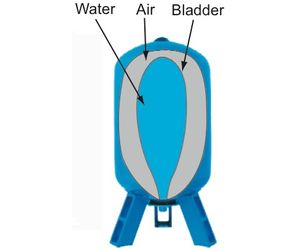

The tanks are manufactured with a tough epoxy baked finish for a rustBfree operation. The replaceable bladder is made from synthetic rubber, which will increase reliability and extend the life span. The bladder design will not permit any water to tank contact, which eliminates seeping, water logging and the requirement for air volume controls.

Pressure tanks will also reduce unnecessary pump starts by storing enough pressure required for several toilet flushes between pump starts. This will in turn, reduce energy costs to operate the pumps. Even in the event of a power failure, the stored pressure in the tank could allow for 5B6 toilet flushes.
