Ayvaz

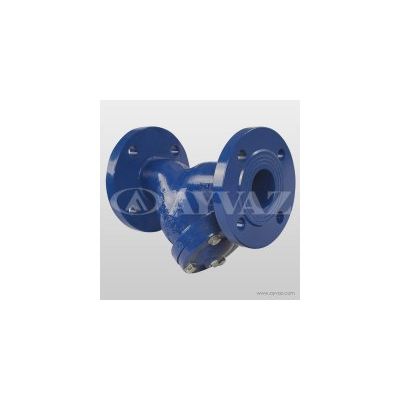

Model PTY-20 -Strainers
FromAyvaz
Ayvaz strainers have wide usage area for filtering impurities in pipelines. They protect all plumbing equipment such as counters, pumps and control valves. They are Y type so they can be cleaned easily without uninstalling. Filter of PTY-20 can remove easily for cleaning.
Most popular related searches
strainer
iron filter
stainless steel flange
compressed air
pump control valve
control valve
pipeline protection
pump controller
protective equipment
filter cleaning
Material Type:
- Body: GG25 ductile iron
- Filter: AISI 304 stainless steel
Connection:
- Flanged
Nominal Diameter:
- DN15 (1/2”) - DN300 (12”)
Working Pressure:
- Up to 16 bars
Working Temperature:
- -10ºC to 300ºC
Typical Applications:
- Steam, water, hot water
- Compressed air
- Gas
- Oil
- Chemical fluid
- LPG
