Model pvClean -Compact Cleaning Robot for Low Slope Solar Plants

Dimensions
Track Width 520 mm
Height (with Supply Hose) 710 mm
Length 1270 mm
Max. Obstacle Height 20 mm
Brush Width 1050 mm
Radio Remote Control
Operational Range 150 m

Supply
Max. Electrical Current 10 A
Voltage 110V/230 V
Nominal Power < 1 kW
Water Consumption 150 l/h

Technical Specification
Weights
Robot 30 kg
Brush Units 2 x 12 kg
Extra Weight Unit 10 kg
Supply Hose (50 m) 20 kg

Speed / Cleaning Performance
Drive Speed (high) 24 m/min
Drive Speed (standard) 18.5 m/min
Nominal Cleaning Performance 600-700 m2/h
Max. Cleaning Performance 1440 m2/h

Protection Class
IP 54

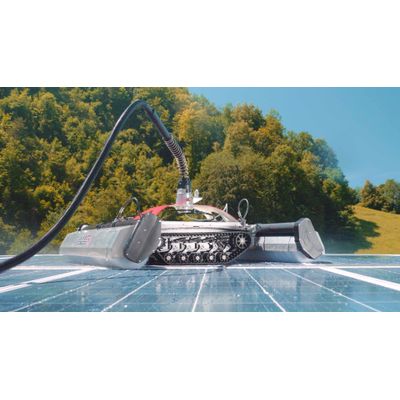

The Serbot pvClean Robot was developed as an efficient and inexpensive cleaning device for solar systems with an installation angle of maximum 15°.

It`s compact and versatile and can easily be moved from one place to the other. Therefore it`s best suited for cleaning companies, offering their service to PV plant owners.

The robot-efficiency reaches up to 600 m2 per hour. It`s a good choice for extended installations, where cleaning by hand is hardly feasible.

The pvClean robot cleans rigorously by rotating brushes, executing a constant pressure on the panels and the use of demineralised water.

The operator can lift the robot comfortably to the installation and control it by radio using a joystick.
